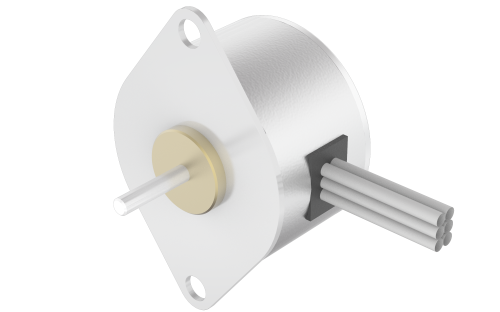

Product Code: 25PM15-0506A.000

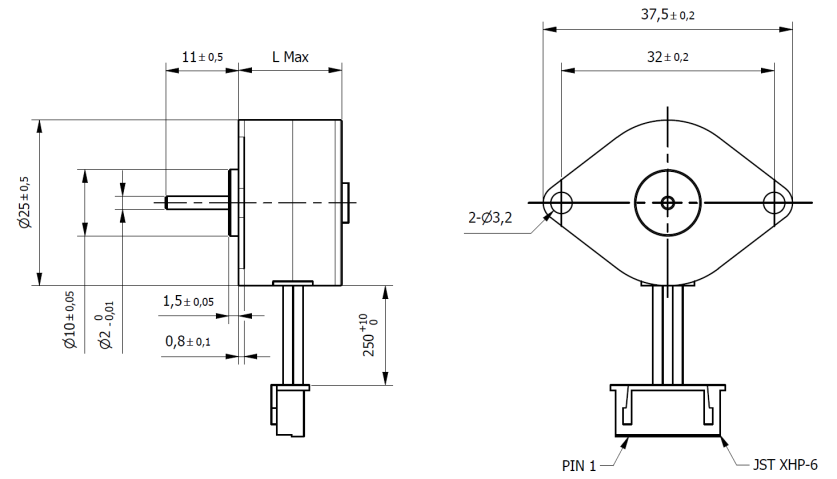

Technical Data Download Dimensions
Size25 mmLength (L)15.5 mm
Current/Phase0.5 AHolding Torque0.014 Nm
Step Angle7.5 °Rated Voltage5 Vdc
Resistance/Phase10 OhmInductance/Phase2 mH
Rotor Inertia1 gcm2N° of Leads4
Weight0.036 KgStep Angle accuracy±8 %
Insulation ClassB Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CMax. Radial Force (3mm from flange)3 N
Max. Axial Force1.5 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
