Hollow Shaft Stepper Motors | Delta Line

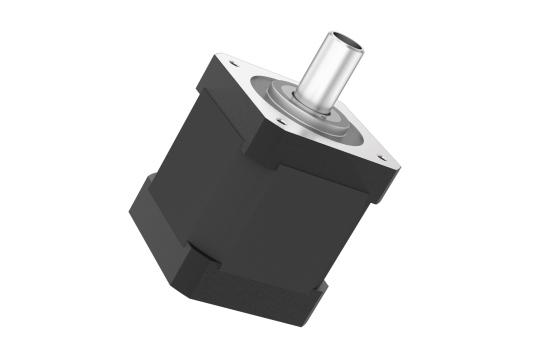

Hollow Shaft Stepper motors

Based on our standard range of 2-Phase Hybrid stepper motor which provides superior performance with respect to step resolution, high torque and speed. Our hollow shaft stepper motor range offers sizes from 20 to 86mm with 1.8° step angle.

Hollow Shaft Stepper motors

Product finder
More Filters
20STC -H
Hollow Shaft Stepper motors
Nema 08
Length (L) (mm) 40
Current/Phase (A) 0,6
Holding Torque (Nm) 0,036
Step Angle (°) 1,8
28STC -H
Hollow Shaft Stepper motors
Nema 11
Length (L) (mm) 51
Current/Phase (A) 0,67
Holding Torque (Nm) 0,12
Step Angle (°) 1,8
35STC -H
Hollow Shaft Stepper motors
Nema 14
Length (L) (mm) 38
Current/Phase (A) 1,2
Holding Torque (Nm) 0,23
Step Angle (°) 1,8
42STC -H
Hollow Shaft Stepper motors
Nema 17
Length (L) (mm) 47,5
Current/Phase (A) 1,7
Holding Torque (Nm) 0,44
Step Angle (°) 1,8
57STC -H
Hollow Shaft Stepper motors
Nema 23
Length (L) (mm) 77,5
Current/Phase (A) 4,2
Holding Torque (Nm) 2,3
Step Angle (°) 1,8
86SH -H
Hollow Shaft Stepper motors
Nema 34
Length (L) (mm) 114
Current/Phase (A) 4,2
Holding Torque (Nm) 6
Step Angle (°) 1,8
