Slotless Brushless DC Motor | Delta Line

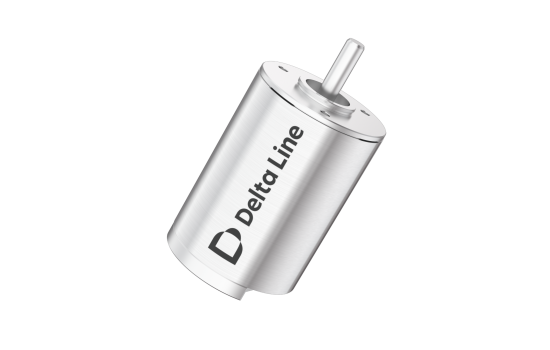

Brushless DC Slotless motors

The self supported rotor of our slotless brushless DC motors, generates low cogging torque and results in very smooth running characteristics. Since there is no iron core, these slotless BLDC motors are able to deliver high speed and acceleration. Our slotless BLDC motor range offers diameters from 10 to 40mm with rated speed up to 61'800rpm.



Brushless DC Slotless motors
.

Products
Product finder
Technology:
Category:
More Filters
10SBL
BLDC Slotless motors - BL series
Size (mm) 10
Length (L) (mm) 19,4
Rated Voltage (Vdc) 3,7
Rated Torque (Nm) 0,0005
Rated Speed (rpm) 7000
14SBL
BLDC Slotless motors - BL series
Size (mm) 14
Length (L) (mm) 32
Rated Voltage (Vdc) 6
Rated Torque (Nm) 0,004
Rated Speed (rpm) 10000
16SBL
BLDC Slotless motors - BL series
Size (mm) 16
Length (L) (mm) 28 - 56
Rated Voltage (Vdc) 12 -24
Rated Torque (Nm) 0,002 - 0,009
Rated Speed (rpm) 22000 - 25000
22SBL
BLDC Slotless motors - BL series
Size (mm) 22
Length (L) (mm) 40 - 70
Rated Voltage (Vdc) 24 - 36
Rated Torque (Nm) 0,006 - 0,025
Rated Speed (rpm) 22000 - 35000
28SBL
BLDC Slotless motors - BL series
Size (mm) 28
Length (L) (mm) 44 - 80
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,018 - 0,06
Rated Speed (rpm) 6000 - 14000
40SBL
BLDC Slotless motors - BL series
Size (mm) 40
Length (L) (mm) 65 - 85
Rated Voltage (Vdc) 24
Rated Torque (Nm) 0,2 - 0,25
Rated Speed (rpm) 5700 - 8700
