Brushless DC motors with EncoderBLDC motors with encoder increase the motion precision, the drive knows the position (or the speed) of the motor in real time and can perform adjustments to align the real condition with the condition requested by the system. Our brushless DC motors with encoder are available in diameters from 42 to 86mm with rated torque up to 1.6Nm. |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |

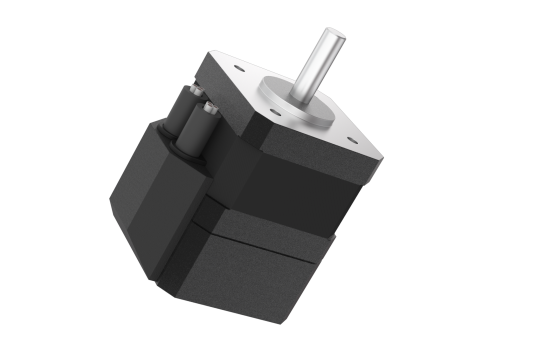

42SVA
BLDC motors with Encoder
| Size (mm) | 42 |
| Length (L) (mm) | 61 - 121,3 |
| Rated Voltage (Vdc) | 24 |
| Rated Torque (Nm) | 0,062 - 0,25 |
| Rated Speed (rpm) | 4000 |
57SVA
BLDC motors with Encoder
| Size (mm) | 57 |
| Length (L) (mm) | 96 - 136 |
| Rated Voltage (Vdc) | 36 |
| Rated Torque (Nm) | 0,3 - 0,6 |
| Rated Speed (rpm) | 3000 |
86SVA
BLDC motors with Encoder
| Size (mm) | 86 |
| Length (L) (mm) | 80 - 121 |
| Rated Voltage (Vdc) | 48 |
| Rated Torque (Nm) | 0,4 - 1,6 |
| Rated Speed (rpm) | 3000 |
|
