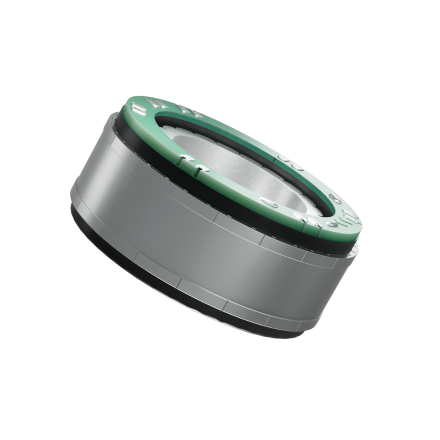

Brushless DC Frameless motorsOne of the latest additions to our range, Frameless BLDC motors, allow for maximum integration with your assembly. These frameless dc motors reduce waste and redundancy by eliminating the need for additional mounting supports, plates or brackets. Our frameless brushless dc motor range offers diameters from 50 to 85mm and length from 15 to 23mm. |
![]() |
.

More Filters


Products
Product finder
Technology: |
Category: |
50BLF
BLDC Frameless motors
Size (mm) | 50 |
Length (L) (mm) | 20 - 26 |
Rated Voltage (Vdc) | 48 |
Rated Torque (Nm) | 0,3 - 0,5 |
Rated Speed (rpm) | 3500 - 5000 |
70BLF
BLDC Frameless motors
Size (mm) | 70 |
Length (L) (mm) | 27,5 - 32 |
Rated Voltage (Vdc) | 48 |
Rated Torque (Nm) | 0,66 - 1 |
Rated Speed (rpm) | 3500 - 3650 |
85BLF
BLDC Frameless motors
Size (mm) | 85 |
Length (L) (mm) | 27,5 - 35 |
Rated Voltage (Vdc) | 48 |
Rated Torque (Nm) | 1,44 - 2 |
Rated Speed (rpm) | 2950 - 3500 |
115BLF
BLDC Frameless motors
Size (mm) | 115 |
Length (L) (mm) | 39 - 68 |
Rated Voltage (Vdc) | 48 |
Rated Torque (Nm) | 3,9 - 9,5 |
Rated Speed (rpm) | 620 - 1400 |
