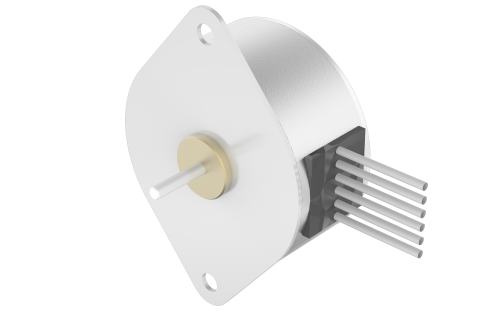

35PM16-0506A

35PM16-0506A

Product Code: 35PM16-0506A

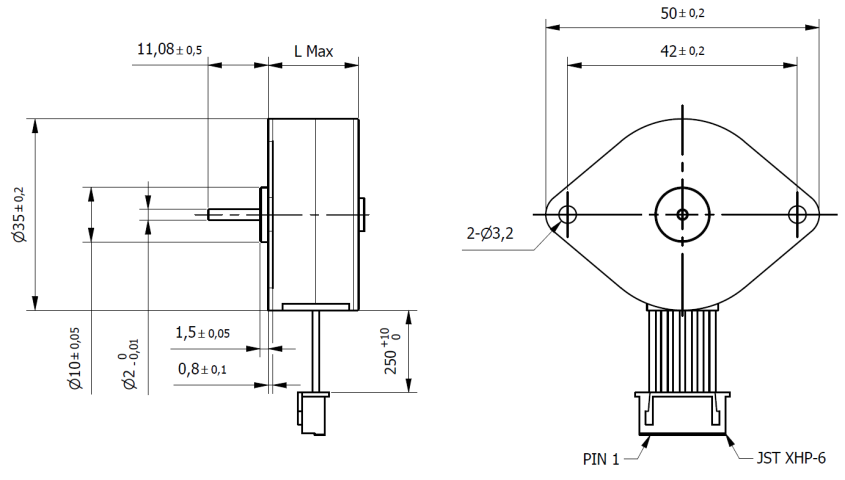

Technical Data Download Dimensions
Size35 mmLength (L)16.5 mm
Current/Phase0.5 AHolding Torque0.04 Nm
Step Angle7.5 °Rated Voltage5 Vdc
Resistance/Phase10 OhmInductance/Phase3.8 mH
Rotor Inertia5 gcm2N° of Leads6
Weight0.09 KgStep Angle accuracy±7 %
Insulation ClassB Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CMax. Radial Force (3mm from flange)3 N
Max. Axial Force1.5 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
