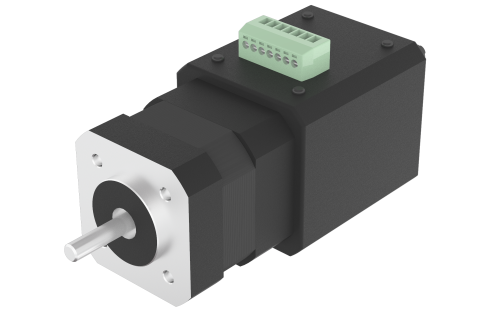

42BL -IE


Product Code: 42BL41-IE.000

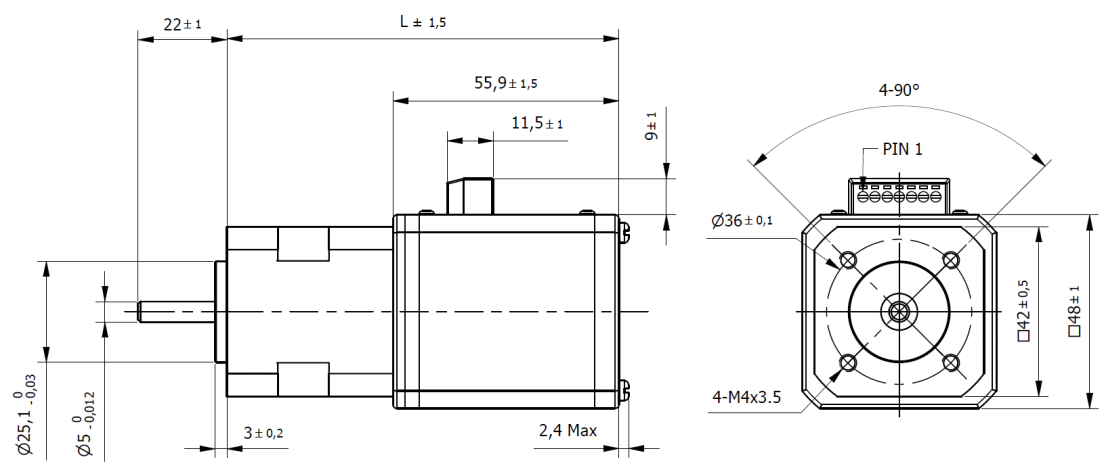

Technical Data Download Dimensions
Size42 mmLength (L)87 mm
Rated Torque0.0625 NmRated Current1.79 A
Rated Voltage24 VdcRated Speed4000 rpm
n° of Pole8 n° of Phase3
Max. Peak Torque0.19 NmTorque Constant0.035 Nm/A
Max. Peak Current6 ANo-Load Current220 mA
Line to Line Resistance1.5 OhmLine to Line Inductance2.1 mH
Rotor Inertia24 gcm2Weight0.5 Kg
Hall Effect Angle120 °Shaft run out0.025 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial Force (10mm from flange)28 NMax. Axial Force10 N
Dielectric strength (for 1 sec.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
