20PM18-0506A

20PM18-0506A

Size 20 mm  |  Length (L) 18.5 mm  |  Current/Phase 0.5 A  |  Holding Torque 0.005 Nm  |  Step Angle 18 °

Product Code: 20PM18-0506A.000

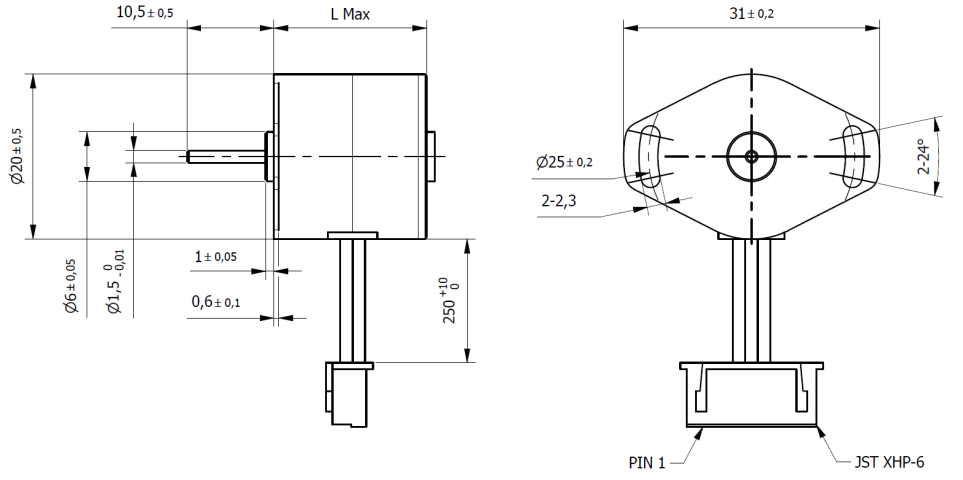

Technical Data Download Dimensions
Size20 mmLength (L)18.5 mm
Current/Phase0.5 AHolding Torque0.005 Nm
Step Angle18 °Rated Voltage5 Vdc
Resistance/Phase10 OhmInductance/Phase1.85 mH
Rotor Inertia1 gcm2N° of Leads4
Weight0.026 KgStep Angle accuracy±8 %
Insulation ClassB Operating Temperature-20°C+50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CMax. Radial Force (3mm from flange)2 N
Max. Axial Force1 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
