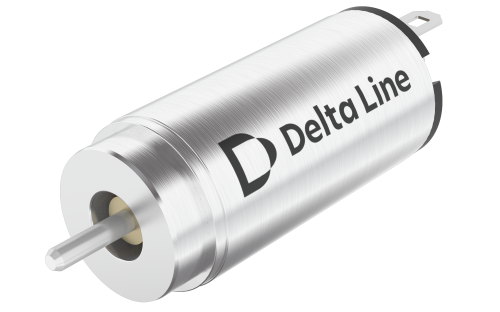

08DC16N-6V-PM

Commutation Precious Metal Brushes | Size 8 mm | Length (L) 16 mm | Rated Voltage 6 Vdc | Rated Torque 0.641 mNm | Rated Speed 4190 rpm

Product Code: 08DC16N-6V-4129-PM.001

Technical Data

Download

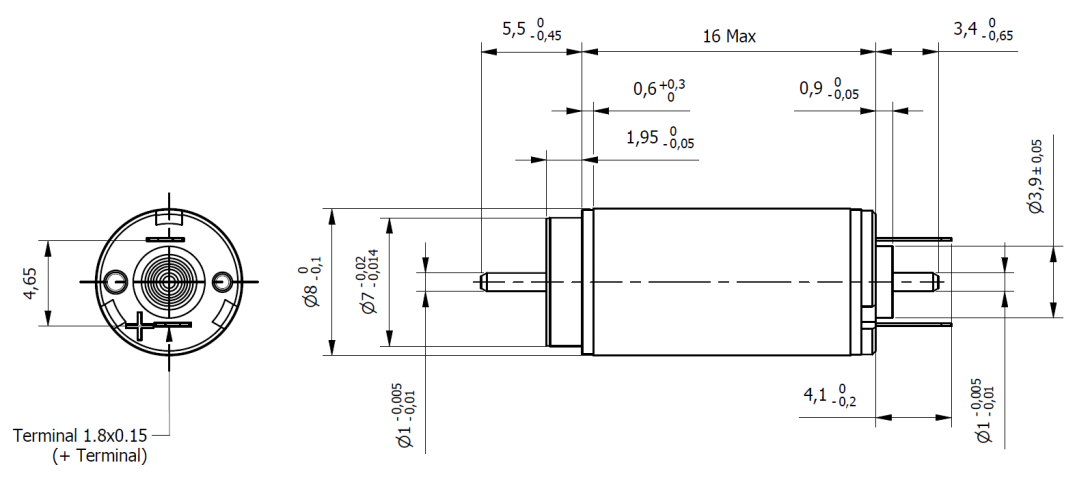

Dimensions

Commutation	Precious Metal Brushes	Size	8 mm
Length (L)	16 mm	Weight	4 g
Rated Voltage	6 Vdc	Rated Torque	0.641 mNm
Rated Speed	4190 rpm	Stall Torque	1.05 mNm
Torque Constant	5.08 mNm/A	Motor Regulation	1123.8 10³/Nms
Rated Current	0.13 A	Stall Current	0.207 A
No-Load Current	5 mA	No-Load Speed	11000 rpm
Line to Line Resistance	29 Ohm	Line to Line Inductance	0.0941 mH
Rotor Inertia	0.0372 gcm²	Max. Efficiency	73 %
Mechanical Time Constant	4.18 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	17300 rpm
Radial Play	0.012mm	Axial Play	0 / 0.1 mm
Max. Radial Force (5mm from flange)	0.4 N	Max. Axial Force	0.1 N
Press-Fit Max.	10 N
