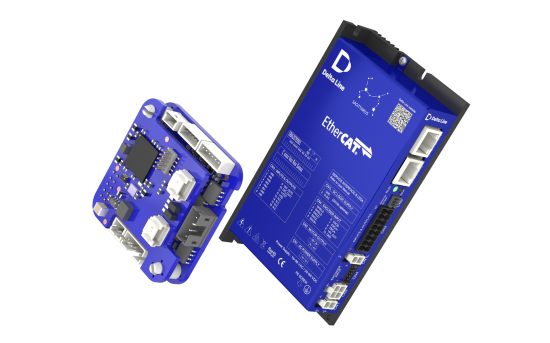

DC Stepper motor Controllers / DrivesOur Stepper Drives are specifically developed for 2-phases DC stepper motors with phase current up to 8,5A rms. All our drives feature ARM Core M4 Technology and are capable to drive motors with smooth and silent movements. Our compact high quality Stepper motor controllers are available with communication fieldbus option such as RS485 ModBus RTU, CANopen, EtherCAT, Ethernet ModBus TCP, Profinet, EtherNet/IP, PowerLink. |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |
Hercules SOD202
Stepper motor Controllers
| Interface | Modbus-RTU, CANopen, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP, PowerLink |
| Power Supply | 12 - 36 VDC |
| Phase Current up to (A rms) | 2 |
| Peak Current (A peak) | 2 |
| Open / Closed Loop | Closed Loop |
Hercules SOD203
Stepper motor Controllers
| Interface | Modbus-RTU, CANopen, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP, PowerLink |
| Power Supply | 12 - 48 VDC |
| Phase Current up to (A rms) | 3 |
| Peak Current (A peak) | 3 |
| Open / Closed Loop | Closed Loop |
Libra SBD205
Stepper motor Controllers
| Interface | Clock & Direction |
| Power Supply | 24 - 80 VDC |
| Phase Current up to (A rms) | 5,5 |
| Peak Current (A peak) | 7,8 |
| Open / Closed Loop | Open Loop |
Aquarius SBD204
Stepper motor Controllers
| Interface | Modbus-TCP, EtherCAT |
| Power Supply | 12 - 48 VDC |
| Phase Current up to (A rms) | 4,2 |
| Peak Current (A peak) | 6 |
| Open / Closed Loop | Closed Loop |
Aquarius SBD207
Stepper motor Controllers
| Interface | Modbus-RTU, CANopen, Profinet |
| Power Supply | 12 - 48 VDC |
| Phase Current up to (A rms) | 7,1 |
| Peak Current (A peak) | 10 |
| Open / Closed Loop | Closed Loop |
Sagittarius
Stepper motor Controllers
| Interface | Modbus-RTU, CANopen, Modbus-TCP, EtherCAT |
| Power Supply | 24-80 VDC |
| Phase Current up to (A rms) | 7,1 |
| Peak Current (A peak) | 10 |
| Open / Closed Loop | Closed Loop |
Andromeda
Stepper motor Controllers
| Interface | Modbus-RTU, CANopen, Modbus-TCP, EtherCAT |
| Power Supply | 24-140 VDC |
| Phase Current up to (A rms) | 8,5 |
| Peak Current (A peak) | 12 |
| Open / Closed Loop | Closed Loop |
|
