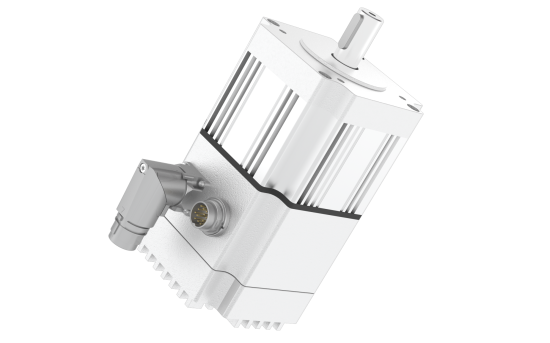

Brushless DC motors with Motion controllerOur BLDC motors with integrated controller offer the compactness of a standard motor together with all the features of our drives. These motors have digital inputs and outputs and an analogue input, and can be also equipped with several Fieldbuses such as: CANopen, Modbus RTU, EtherCAT, Modbus TCP/IP, Profinet, Powerlink, EtherNet/IP. To reach top performances, a single turn magnetic encoder can also be fully integrated. Several of our models are IP65 rated as standard so that they can be used in a wide variety of environments without concern. |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |
IBS042
BLDC with Motion controller
| Size (mm) | 42 |
| Interface | Analog, Modbus-RTU, CANopen |
| Rated Torque (Nm) | 0,062 - 0,25 |
| Rated Power (Watt) | 26 - 100 |
| Operating Voltage (Vdc) | 24 - 36 |
IBS057
BLDC with Motion controller
| Size (mm) | 57 |
| Interface | Analog, Modbus-RTU, CANopen, Modbus-TCP, EtherCAT. Profinet, EtherNet/IP, PowerLink |
| Rated Torque (Nm) | 0,055 - 0,44 |
| Rated Power (Watt) | 22 - 168 |
| Operating Voltage (Vdc) | 24 - 36 |
IBI057 -IP65
BLDC with Motion controller
| Size (mm) | 57 |
| Interface | Analog, Modbus-RTU, CANopen, Modbus-TCP, EtherCAT. Profinet, EtherNet/IP, PowerLink |
| Rated Torque (Nm) | 0,055 - 0,44 |
| Rated Power (Watt) | 22 - 168 |
| Operating Voltage (Vdc) | 24 - 36 |
IBS080
BLDC with Motion controller
| Size (mm) | 80 |
| Interface | Modbus-RTU, CANopen |
| Rated Torque (Nm) | 0,8 - 1,13 |
| Rated Power (Watt) | 290 - 362 |
| Operating Voltage (Vdc) | 24 - 48 |
IBI080-IP65
BLDC with Motion controller
| Size (mm) | 80 |
| Interface | Modbus-RTU, CANopen |
| Rated Torque (Nm) | 0,8 - 1,13 |
| Rated Power (Watt) | 290 - 362 |
| Operating Voltage (Vdc) | 24 - 48 |
|
