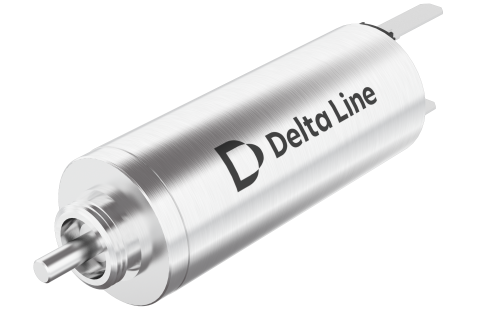

10DC25N-12V-PM

Commutation Precious Metal Brushes | Size 10 mm | Length (L) 25.2 mm | Rated Voltage 12 Vdc | Rated Torque 2.03 mNm | Rated Speed 5980 rpm

Product Code: 10DC25N-12V-5927-PM.001

Technical Data

Download

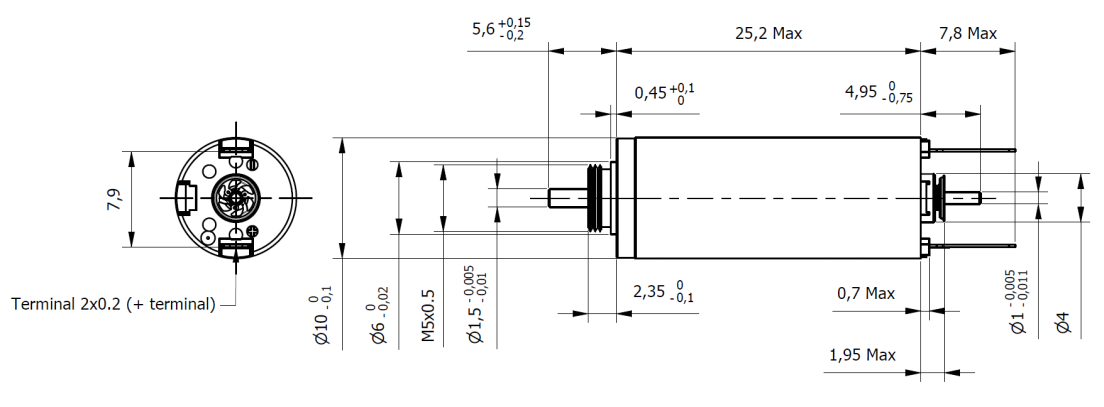

Dimensions

Commutation	Precious Metal Brushes	Size	10 mm
Length (L)	25.2 mm	Weight	11 g
Rated Voltage	12 Vdc	Rated Torque	2.03 mNm
Rated Speed	5980 rpm	Stall Torque	4.36 mNm
Torque Constant	10 mNm/A	Motor Regulation	273 10³/Nms
Rated Current	0.211 A	Stall Current	0.439 A
No-Load Current	9 mA	No-Load Speed	11300 rpm
Line to Line Resistance	27.3 Ohm	Line to Line Inductance	0.362 mH
Rotor Inertia	0.13 gcm²	Max. Efficiency	74 %
Mechanical Time Constant	3.59 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	14300 rpm
Radial Play	0.015mm	Axial Play	0 / 0.15 mm
Max. Radial Force (5mm from flange)	0.8 N	Max. Axial Force	0.1 N
Press-Fit Max.	30 N
