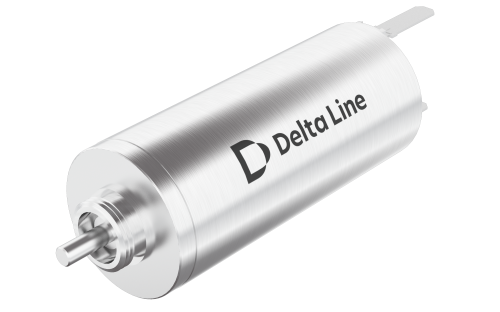

12DC28N-3V-PM

Commutation Precious Metal Brushes | Size 12 mm | Length (L) 28.2 mm | Rated Voltage 3 Vdc | Rated Torque 2.88 mNm | Rated Speed 6230 rpm

Product Code: 12DC28N-3V-6209-PM.001

Technical Data

Download

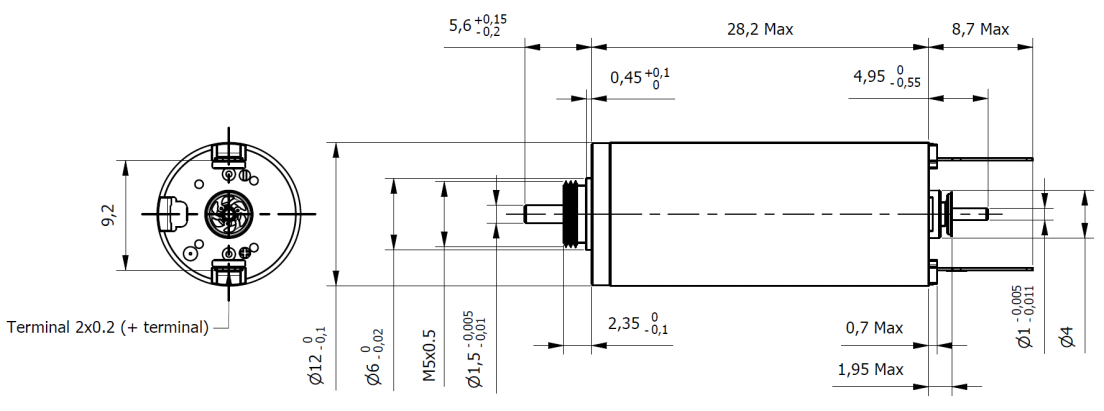

Dimensions

Commutation	Precious Metal Brushes	Size	12 mm
Length (L)	28.2 mm	Weight	16 g
Rated Voltage	3 Vdc	Rated Torque	2.88 mNm
Rated Speed	6230 rpm	Stall Torque	9.9 mNm
Torque Constant	3.22 mNm/A	Motor Regulation	94 10³/Nms
Rated Current	0.924 A	Stall Current	3.08 A
No-Load Current	31 mA	No-Load Speed	8810 rpm
Line to Line Resistance	0.975 Ohm	Line to Line Inductance	0.031 mH
Rotor Inertia	0.484 gcm²	Max. Efficiency	81 %
Mechanical Time Constant	4.55 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	12000 rpm
Radial Play	0.015mm	Axial Play	0 / 0.15 mm
Max. Radial Force (5mm from flange)	0.8 N	Max. Axial Force	0.1 N
Press-Fit Max.	30 N
