12DC28N-6V-PM

Commutation Precious Metal Brushes | Size 12 mm | Length (L) 28.2 mm | Rated Voltage 6 Vdc | Rated Torque 3.88 mNm | Rated Speed 5540 rpm

Product Code: 12DC28N-6V-5503-PM.001

Technical Data

Download

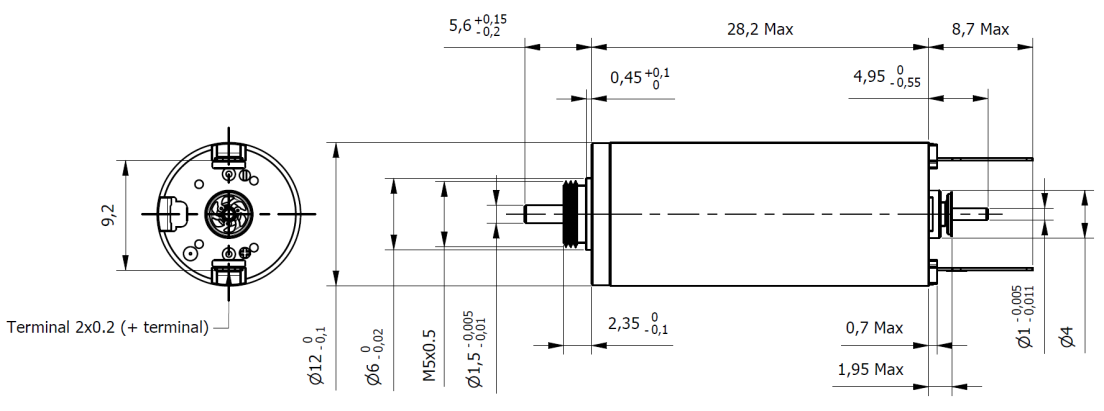

Dimensions

Commutation	Precious Metal Brushes	Size	12 mm
Length (L)	28.2 mm	Weight	16 g
Rated Voltage	6 Vdc	Rated Torque	3.88 mNm
Rated Speed	5540 rpm	Stall Torque	10.5 mNm
Torque Constant	6.44 mNm/A	Motor Regulation	88.7 10³/Nms
Rated Current	0.616 A	Stall Current	1.63 A
No-Load Current	16 mA	No-Load Speed	8810 rpm
Line to Line Resistance	3.68 Ohm	Line to Line Inductance	0.125 mH
Rotor Inertia	0.016 gcm²	Max. Efficiency	82 %
Mechanical Time Constant	4.4 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	12000 rpm
Radial Play	0.015mm	Axial Play	0 / 0.15 mm
Max. Radial Force (5mm from flange)	0.8 N	Max. Axial Force	0.1 N
Press-Fit Max.	30 N
