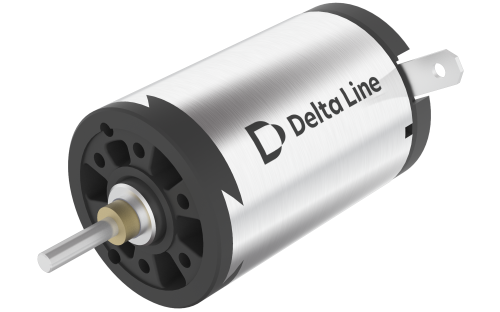

16DC25P-12V-G

Commutation Graphite Brushes | Size 16 mm | Length (L) 25.4 mm | Rated Voltage 12 Vdc | Rated Torque 4.31 mNm | Rated Speed 6200 rpm

Product Code: 16DC25P-12V-6211-G.001

Technical Data

Download

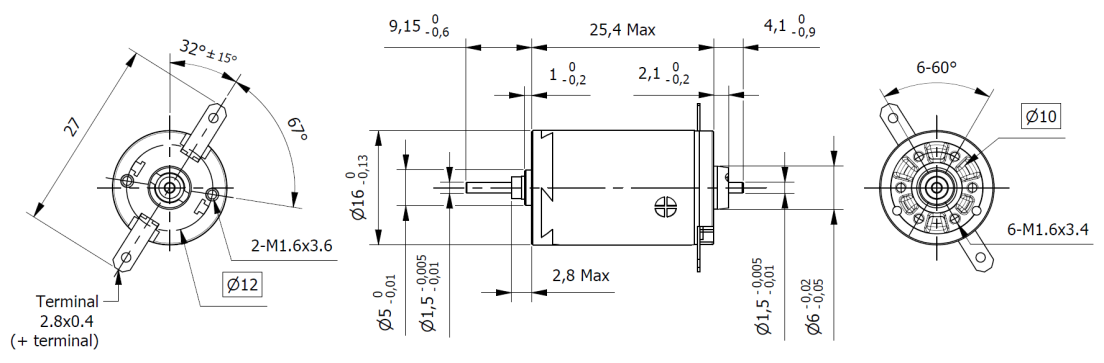

Dimensions

Commutation	Graphite Brushes	Size	16 mm
Length (L)	25.4 mm	Weight	23 g
Rated Voltage	12 Vdc	Rated Torque	4.31 mNm
Rated Speed	6200 rpm	Stall Torque	11.9 mNm
Torque Constant	11.2 mNm/A	Motor Regulation	90.9 10³/Nms
Rated Current	0.413 A	Stall Current	1.05 A
No-Load Current	34 mA	No-Load Speed	9860 rpm
Line to Line Resistance	11.4 Ohm	Line to Line Inductance	0.343 mH
Rotor Inertia	0.993 gcm²	Max. Efficiency	68 %
Mechanical Time Constant	8.92 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	125 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	1.4 N	Max. Axial Force	0.8 N
Press-Fit Max.	35 N
