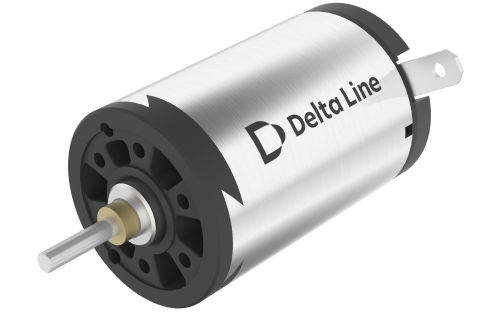

16DC25P-24V-G

Commutation Graphite Brushes | Size 16 mm | Length (L) 25.4 mm | Rated Voltage 24 Vdc | Rated Torque 4.76 mNm | Rated Speed 6580 rpm

Product Code: 16DC25P-24V-6537-G.001

Technical Data

Download

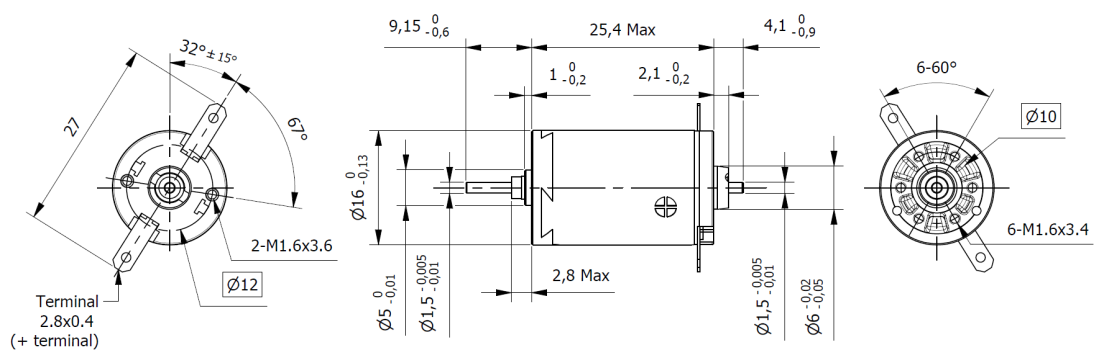

Dimensions

Commutation	Graphite Brushes	Size	16 mm
Length (L)	25.4 mm	Weight	23 g
Rated Voltage	24 Vdc	Rated Torque	4.76 mNm
Rated Speed	6580 rpm	Stall Torque	14.4 mNm
Torque Constant	22.5 mNm/A	Motor Regulation	74.1 10³/Nms
Rated Current	0.227 A	Stall Current	0.64 A
No-Load Current	17 mA	No-Load Speed	9920 rpm
Line to Line Resistance	37.5 Ohm	Line to Line Inductance	1.37 mH
Rotor Inertia	1.16 gcm²	Max. Efficiency	71 %
Mechanical Time Constant	8.57 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	125 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	1.4 N	Max. Axial Force	0.8 N
Press-Fit Max.	35 N
