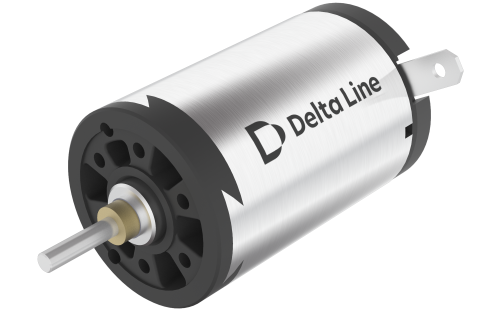

16DC25P-24V-PM

Commutation Precious Metal Brushes | Size 16 mm | Length (L) 25.4 mm | Rated Voltage 24 Vdc | Rated Torque 3.8 mNm | Rated Speed 4210 rpm

Product Code: 16DC25P-24V-4283-PM.001

Technical Data

Download

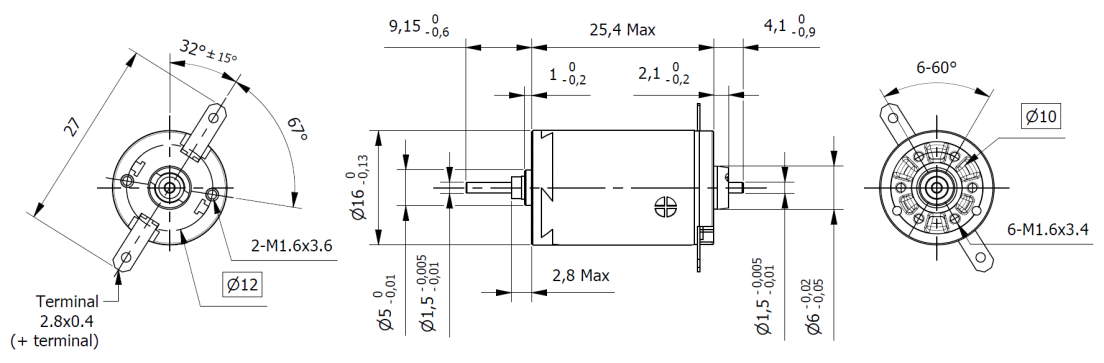

Dimensions

Commutation	Precious Metal Brushes	Size	16 mm
Length (L)	25.4 mm	Weight	23 g
Rated Voltage	24 Vdc	Rated Torque	3.8 mNm
Rated Speed	4210 rpm	Stall Torque	8.75 mNm
Torque Constant	30.3 mNm/A	Motor Regulation	90.6 10³/Nms
Rated Current	0.128 A	Stall Current	0.289 A
No-Load Current	3 mA	No-Load Speed	7470 rpm
Line to Line Resistance	83.2 Ohm	Line to Line Inductance	2.49 mH
Rotor Inertia	0.994 gcm²	Max. Efficiency	80 %
Mechanical Time Constant	9 ms	Ambient Temperature Sleeve bearings	-30 / +65 °C
Max. Winding Temperature	85 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	1.4 N	Max. Axial Force	0.8 N
Press-Fit Max.	35 N
