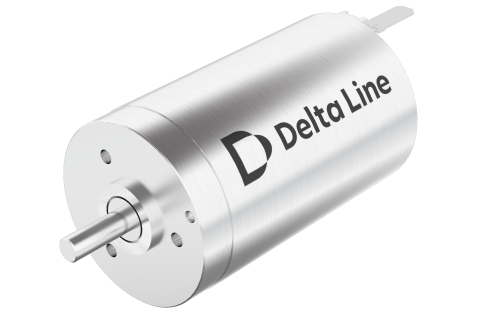

16DC26N-12V-PM

Commutation Precious Metal Brushes | Size 16 mm | Length (L) 26.5 mm | Rated Voltage 12 Vdc | Rated Torque 5.19 mNm | Rated Speed 3320 rpm

Product Code: 16DC26N-12V-3319-PM.001

Technical Data

Download

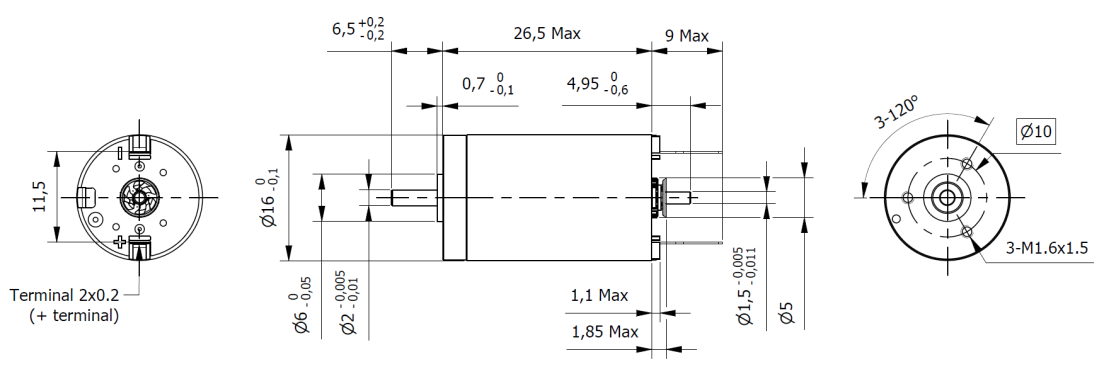

Dimensions

Commutation	Precious Metal Brushes	Size	16 mm
Length (L)	26.5 mm	Weight	26 g
Rated Voltage	12 Vdc	Rated Torque	5.19 mNm
Rated Speed	3320 rpm	Stall Torque	11.2 mNm
Torque Constant	18 mNm/A	Motor Regulation	59.3 10³/Nms
Rated Current	0.299 A	Stall Current	0.624 A
No-Load Current	11 mA	No-Load Speed	6260 rpm
Line to Line Resistance	19.2 Ohm	Line to Line Inductance	0.581 mH
Rotor Inertia	1.03 gcm²	Max. Efficiency	75 %
Mechanical Time Constant	6.11 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	8680 rpm
Radial Play	0.015mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	2 N	Max. Axial Force	0.1 N
Press-Fit Max.	60 N
