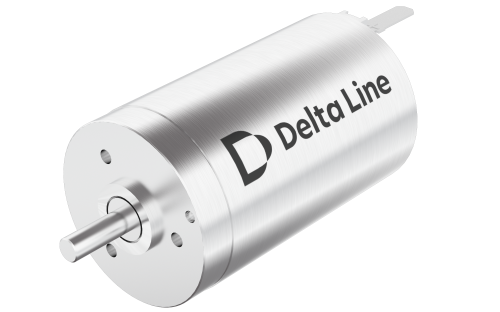

16DC26N-6V-PM

Commutation Precious Metal Brushes | Size 16 mm | Length (L) 26.5 mm | Rated Voltage 6 Vdc | Rated Torque 5.36 mNm | Rated Speed 3760 rpm

Product Code: 16DC26N-6V-3704-PM.001

Technical Data

Download

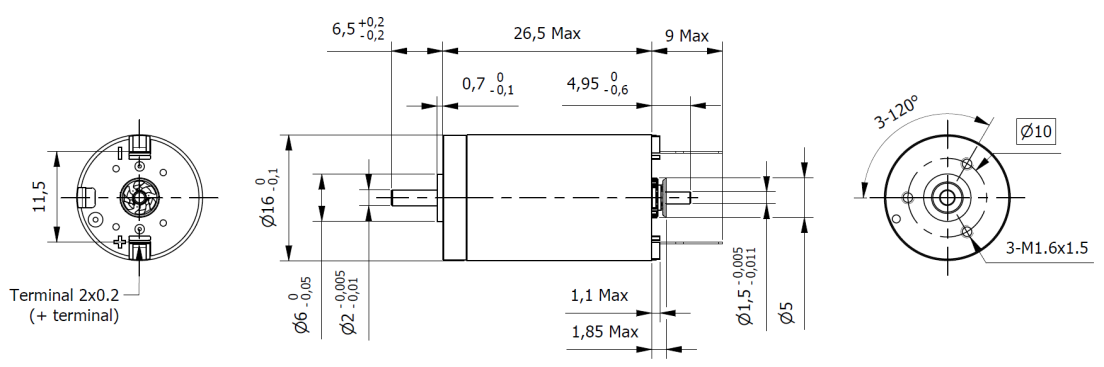

Dimensions

Commutation	Precious Metal Brushes	Size	16 mm
Length (L)	26.5 mm	Weight	26 g
Rated Voltage	6 Vdc	Rated Torque	5.36 mNm
Rated Speed	3760 rpm	Stall Torque	12.6 mNm
Torque Constant	8.53 mNm/A	Motor Regulation	60.6 10³/Nms
Rated Current	0.65 A	Stall Current	1.48 A
No-Load Current	23 mA	No-Load Speed	6610 rpm
Line to Line Resistance	4.06 Ohm	Line to Line Inductance	0.131 mH
Rotor Inertia	1.08 gcm²	Max. Efficiency	71 %
Mechanical Time Constant	6.05 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	8680 rpm
Radial Play	0.015mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	2 N	Max. Axial Force	0.1 N
Press-Fit Max.	60 N
