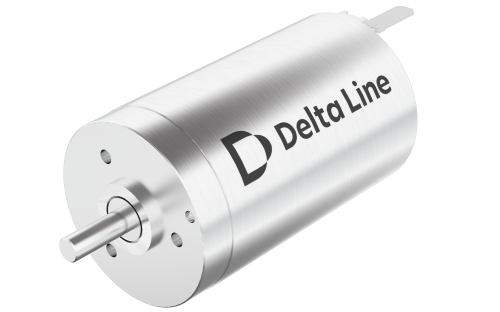

16DC40N-12V-G

Commutation Graphite Brushes | Size 16 mm | Length (L) 40.4 mm | Rated Voltage 12 Vdc | Rated Torque 10.4 mNm | Rated Speed 10700 rpm

Product Code: 16DC40N-12V-10701-G.001

Technical Data

Download

Dimensions

Commutation	Graphite Brushes	Size	16 mm
Length (L)	40.4 mm	Weight	42 g
Rated Voltage	12 Vdc	Rated Torque	10.4 mNm
Rated Speed	10700 rpm	Stall Torque	63.3 mNm
Torque Constant	8.59 mNm/A	Motor Regulation	22.1 10³/Nms
Rated Current	1.24 A	Stall Current	7.37 A
No-Load Current	39 mA	No-Load Speed	13200 rpm
Line to Line Resistance	1.63 Ohm	Line to Line Inductance	0.096 mH
Rotor Inertia	2.36 gcm²	Max. Efficiency	83 %
Mechanical Time Constant	5.21 ms	Ambient Temperature Sleeve bearings	-30 / +100 °C
Max. Winding Temperature	125 °C	Max. Speed	15000 rpm
Radial Play	0.015mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	2 N	Max. Axial Force	0.1 N
Press-Fit Max.	60 N
