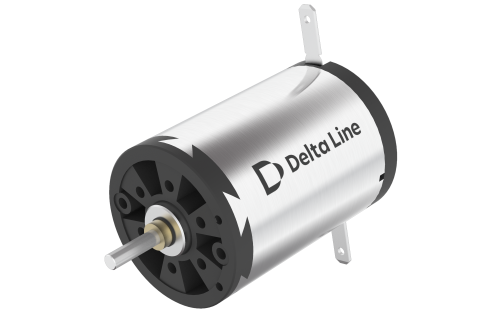

22DC32P-12V-G

Commutation Graphite Brushes | Size 22 mm | Length (L) 32 mm | Rated Voltage 12 Vdc | Rated Torque 12.6 mNm | Rated Speed 5240 rpm

Product Code: 22DC32P-12V-5203-G.001

Technical Data

Download

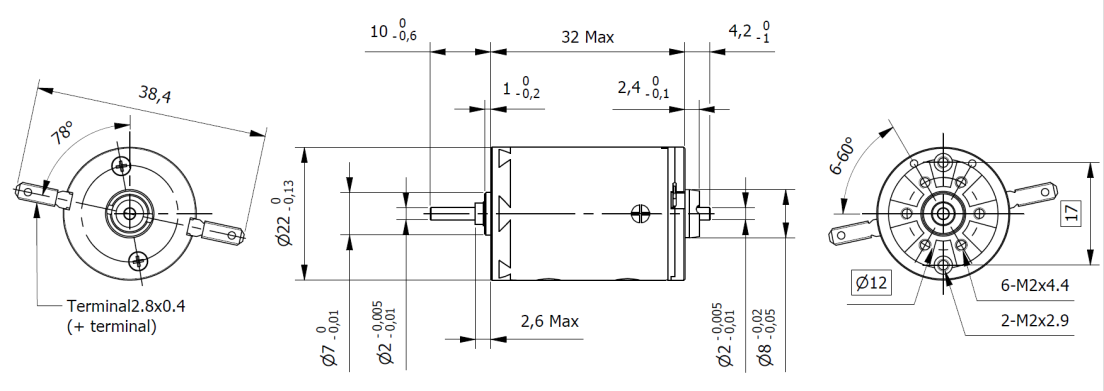

Dimensions

Commutation	Graphite Brushes	Size	22 mm
Length (L)	32 mm	Weight	54 g
Rated Voltage	12 Vdc	Rated Torque	12.6 mNm
Rated Speed	5240 rpm	Stall Torque	49.4 mNm
Torque Constant	15.8 mNm/A	Motor Regulation	15.3 10³/Nms
Rated Current	0.825 A	Stall Current	3.14 A
No-Load Current	30 mA	No-Load Speed	7140 rpm
Line to Line Resistance	3.83 Ohm	Line to Line Inductance	0.274 mH
Rotor Inertia	5.57 gcm²	Max. Efficiency	80 %
Mechanical Time Constant	8.57 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	125 °C	Max. Speed	9000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	2.8 N	Max. Axial Force	1.7 N
Press-Fit Max.	80 N
