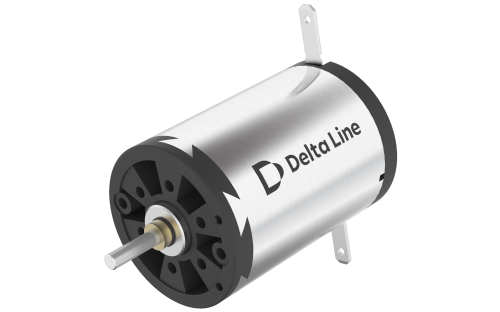

22DC32P-12V-PM

Commutation Precious Metal Brushes | Size 22 mm | Length (L) 32 mm | Rated Voltage 12 Vdc | Rated Torque 10.3 mNm | Rated Speed 4240 rpm

Product Code: 22DC32P-12V-4206-PM.001

Technical Data

Download

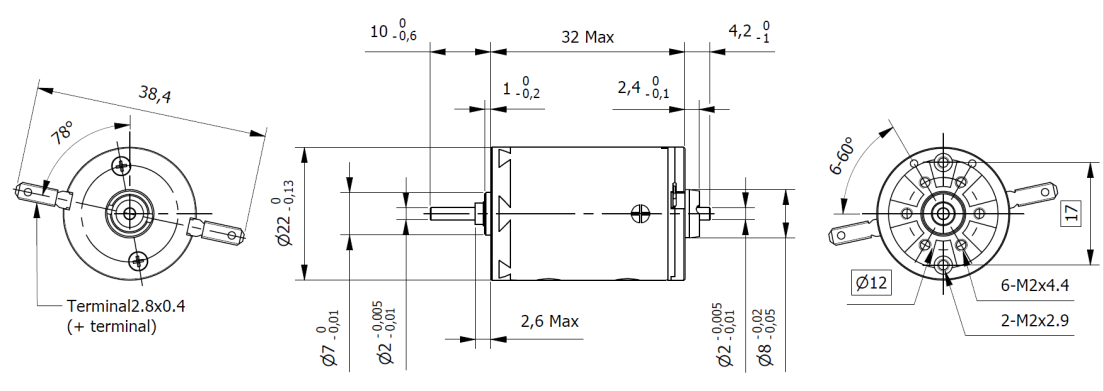

Dimensions

Commutation	Precious Metal Brushes	Size	22 mm
Length (L)	32 mm	Weight	54 g
Rated Voltage	12 Vdc	Rated Torque	10.3 mNm
Rated Speed	4240 rpm	Stall Torque	36.9 mNm
Torque Constant	19.3 mNm/A	Motor Regulation	16.9 10³/Nms
Rated Current	0.543 A	Stall Current	1.91 A
No-Load Current	12 mA	No-Load Speed	5890 rpm
Line to Line Resistance	6.28 Ohm	Line to Line Inductance	0.413 mH
Rotor Inertia	4.98 gcm²	Max. Efficiency	85.2 %
Mechanical Time Constant	8.36 ms	Ambient Temperature Sleeve bearings	-30 / +65 °C
Max. Winding Temperature	85 °C	Max. Speed	9000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	2.8 N	Max. Axial Force	1.7 N
Press-Fit Max.	80 N
