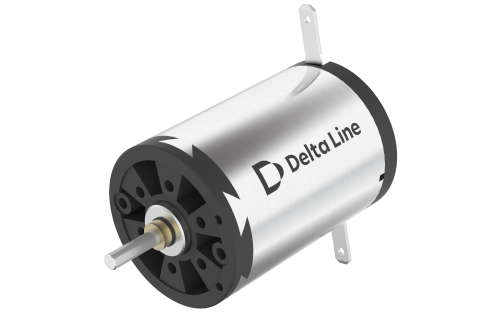

22DC32P-24V-G

Commutation Graphite Brushes | Size 22 mm | Length (L) 32 mm | Rated Voltage 24 Vdc | Rated Torque 11.8 mNm | Rated Speed 5350 rpm

Product Code: 22DC32P-24V-5316-G.001

Technical Data

Download

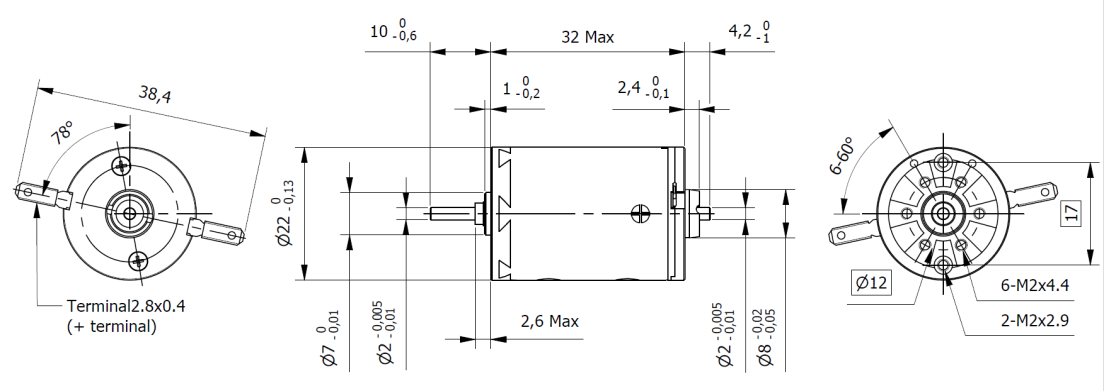

Dimensions

Commutation	Graphite Brushes	Size	22 mm
Length (L)	32 mm	Weight	54 g
Rated Voltage	24 Vdc	Rated Torque	11.8 mNm
Rated Speed	5350 rpm	Stall Torque	44.6 mNm
Torque Constant	30.8 mNm/A	Motor Regulation	17.5 10³/Nms
Rated Current	0.398 A	Stall Current	1.45 A
No-Load Current	15 mA	No-Load Speed	7330 rpm
Line to Line Resistance	16.6 Ohm	Line to Line Inductance	1.05 mH
Rotor Inertia	4.69 gcm²	Max. Efficiency	80 %
Mechanical Time Constant	8.2 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	125 °C	Max. Speed	9000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	2.8 N	Max. Axial Force	1.7 N
Press-Fit Max.	80 N
