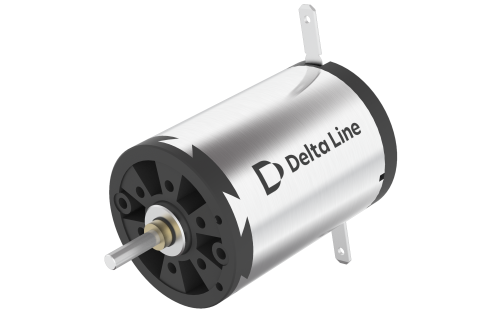

22DC32P-24V-PM

Commutation Precious Metal Brushes | Size 22 mm | Length (L) 32 mm | Rated Voltage 24 Vdc | Rated Torque 10.4 mNm | Rated Speed 3440 rpm

Product Code: 22DC32P-24V-3433-PM.001

Technical Data

Download

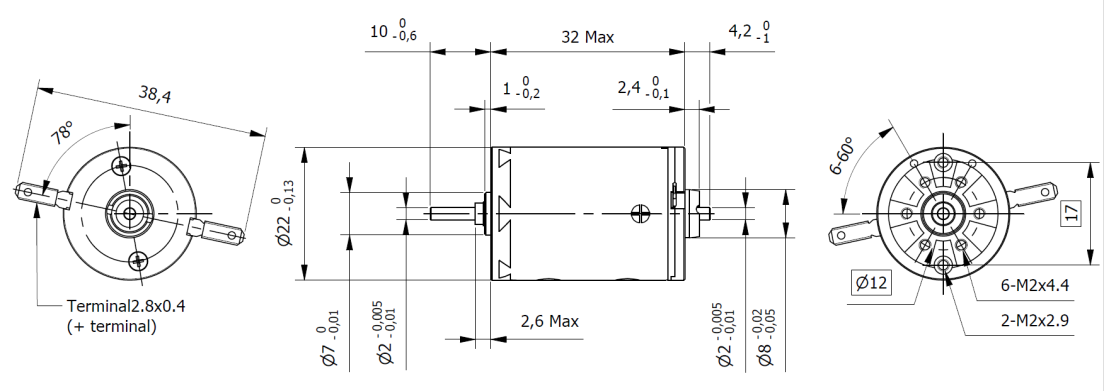

Dimensions

Commutation	Precious Metal Brushes	Size	22 mm
Length (L)	32 mm	Weight	54 g
Rated Voltage	24 Vdc	Rated Torque	10.4 mNm
Rated Speed	3440 rpm	Stall Torque	33.3 mNm
Torque Constant	44.8 mNm/A	Motor Regulation	16.6 10³/Nms
Rated Current	0.236 A	Stall Current	0.721 A
No-Load Current	5 mA	No-Load Speed	5090 rpm
Line to Line Resistance	33.3 Ohm	Line to Line Inductance	2.21 mH
Rotor Inertia	5.05 gcm²	Max. Efficiency	84.9 %
Mechanical Time Constant	8.39 ms	Ambient Temperature Sleeve bearings	-30 / +65 °C
Max. Winding Temperature	85 °C	Max. Speed	9000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	2.8 N	Max. Axial Force	1.7 N
Press-Fit Max.	80 N
