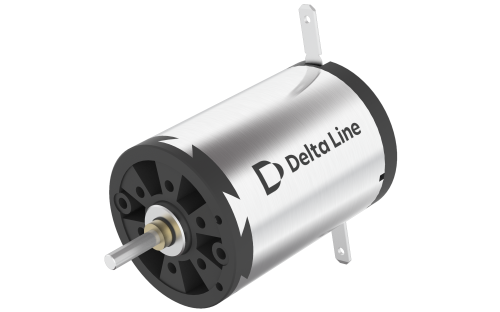

22DC32P-6V-PM

Commutation Precious Metal Brushes | Size 22 mm | Length (L) 32 mm | Rated Voltage 6 Vdc | Rated Torque 8.54 mNm | Rated Speed 4280 rpm

Product Code: 22DC32P-6V-4201-PM.001

Technical Data

Download

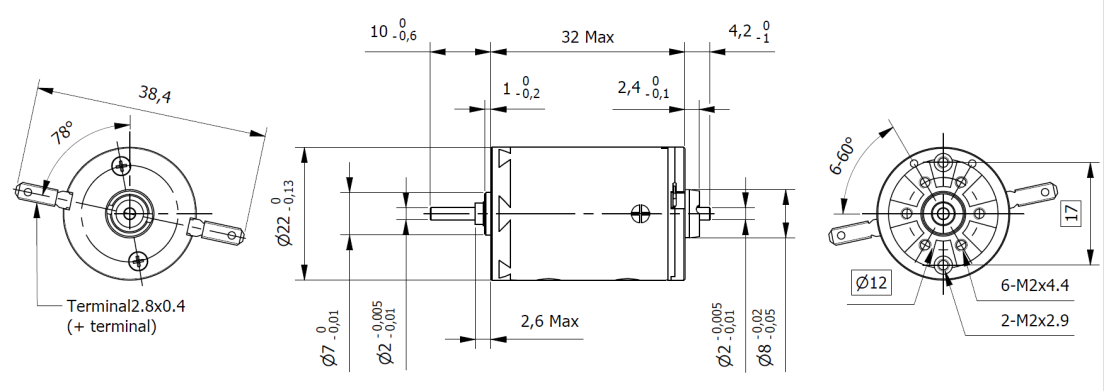

Dimensions

Commutation	Precious Metal Brushes	Size	22 mm
Length (L)	32 mm	Weight	54 g
Rated Voltage	6 Vdc	Rated Torque	8.54 mNm
Rated Speed	4280 rpm	Stall Torque	39 mNm
Torque Constant	10.4 mNm/A	Motor Regulation	14.8 10³/Nms
Rated Current	0.84 A	Stall Current	3.75 A
No-Load Current	21 mA	No-Load Speed	5480 rpm
Line to Line Resistance	1.6 Ohm	Line to Line Inductance	0.119 mH
Rotor Inertia	5.7 gcm²	Max. Efficiency	87.5 %
Mechanical Time Constant	8.44 ms	Ambient Temperature Sleeve bearings	-30 / +65 °C
Max. Winding Temperature	85 °C	Max. Speed	9000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	2.8 N	Max. Axial Force	1.7 N
Press-Fit Max.	80 N
