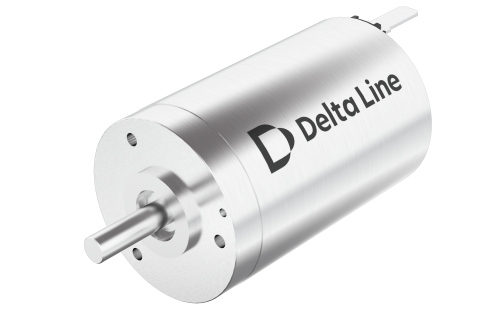

22DC34N-12V-PM

Commutation Precious Metal Brushes | Size 22 mm | Length (L) 34.2 mm | Rated Voltage 12 Vdc | Rated Torque 14.7 mNm | Rated Speed 4670 rpm

Product Code: 22DC34N-12V-4603-PM.001

Technical Data

Download

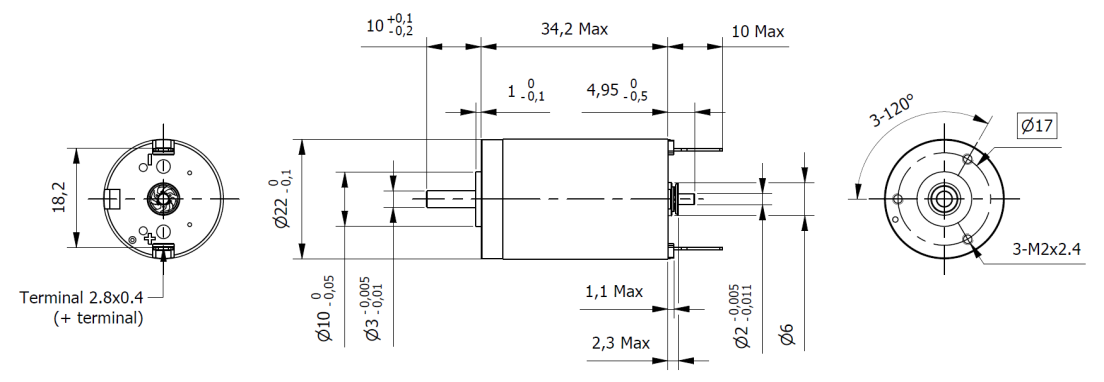

Dimensions

Commutation	Precious Metal Brushes	Size	22 mm
Length (L)	34.2 mm	Weight	66 g
Rated Voltage	12 Vdc	Rated Torque	14.7 mNm
Rated Speed	4670 rpm	Stall Torque	59.7 mNm
Torque Constant	18.4 mNm/A	Motor Regulation	10.9 10³/Nms
Rated Current	0.817 A	Stall Current	3.25 A
No-Load Current	20 mA	No-Load Speed	6200 rpm
Line to Line Resistance	3.69 Ohm	Line to Line Inductance	0.231 mH
Rotor Inertia	5.55 gcm²	Max. Efficiency	85 %
Mechanical Time Constant	6.07 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	7160 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
