Home > 22DC -N

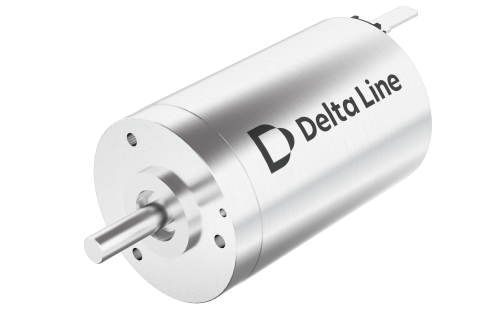

22DC34N-24V-G

Commutation Graphite Brushes | Size 22 mm | Length (L) 34.2 mm | Rated Voltage 24 Vdc | Rated Torque 15.3 mNm | Rated Speed 10800 rpm

Product Code: 22DC34N-24V-10803-G.001

Technical Data

Download

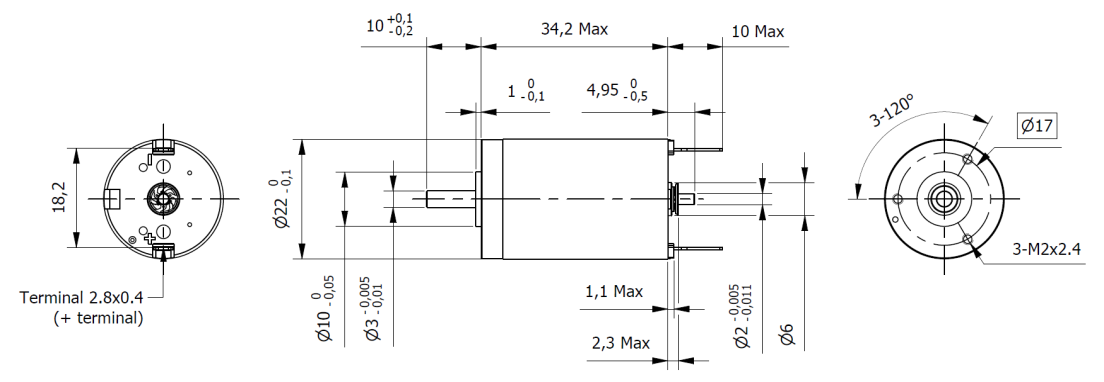

Dimensions

Commutation	Graphite Brushes	Size	22 mm
Length (L)	34.2 mm	Weight	66 g
Rated Voltage	24 Vdc	Rated Torque	15.3 mNm
Rated Speed	10800 rpm	Stall Torque	120 mNm
Torque Constant	18.4 mNm/A	Motor Regulation	10.9 10³/Nms
Rated Current	0.869 A	Stall Current	6.51 A
No-Load Current	36 mA	No-Load Speed	12400 rpm
Line to Line Resistance	3.69 Ohm	Line to Line Inductance	0.231 mH
Rotor Inertia	5.55 gcm²	Max. Efficiency	86 %
Mechanical Time Constant	6.07 ms	Ambient Temperature Sleeve bearings	-30 / +100 °C
Max. Winding Temperature	125 °C	Max. Speed	18000 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
