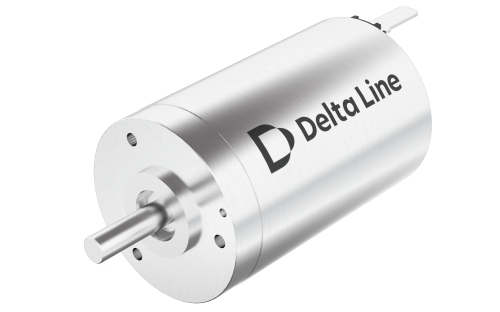

22DC34N-48V-G

Commutation Graphite Brushes | Size 22 mm | Length (L) 34.2 mm | Rated Voltage 48 Vdc | Rated Torque 14 mNm | Rated Speed 10900 rpm

Product Code: 22DC34N-48V-10916-G.001

Technical Data

Download

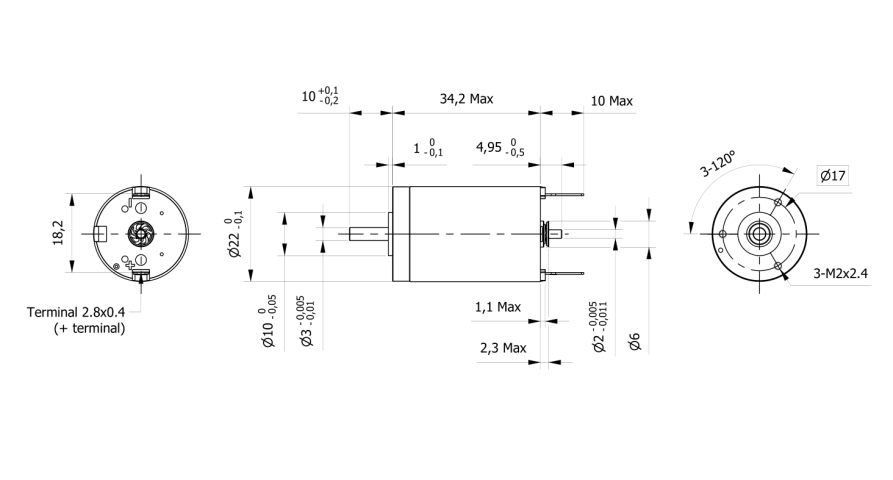

Dimensions

Commutation	Graphite Brushes	Size	22 mm
Length (L)	34.2 mm	Weight	66 g
Rated Voltage	48 Vdc	Rated Torque	14 mNm
Rated Speed	10900 rpm	Stall Torque	104 mNm
Torque Constant	35.9 mNm/A	Motor Regulation	12.9 10³/Nms
Rated Current	0.406 A	Stall Current	2.9 A
No-Load Current	18 mA	No-Load Speed	12700 rpm
Line to Line Resistance	16.6 Ohm	Line to Line Inductance	0.881 mH
Rotor Inertia	4.67 gcm²	Max. Efficiency	84 %
Mechanical Time Constant	6.01 ms	Ambient Temperature Sleeve bearings	-30 / +100 °C
Max. Winding Temperature	125 °C	Max. Speed	18000 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
