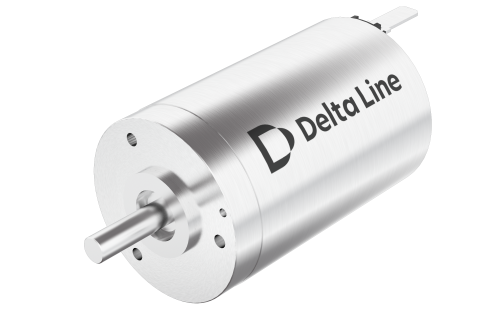

22DC34N-48V-PM

Commutation Precious Metal Brushes | Size 22 mm | Length (L) 34.2 mm | Rated Voltage 48 Vdc | Rated Torque 13.6 mNm | Rated Speed 4240 rpm

Product Code: 22DC34N-48V-4276-PM.001

Technical Data

Download

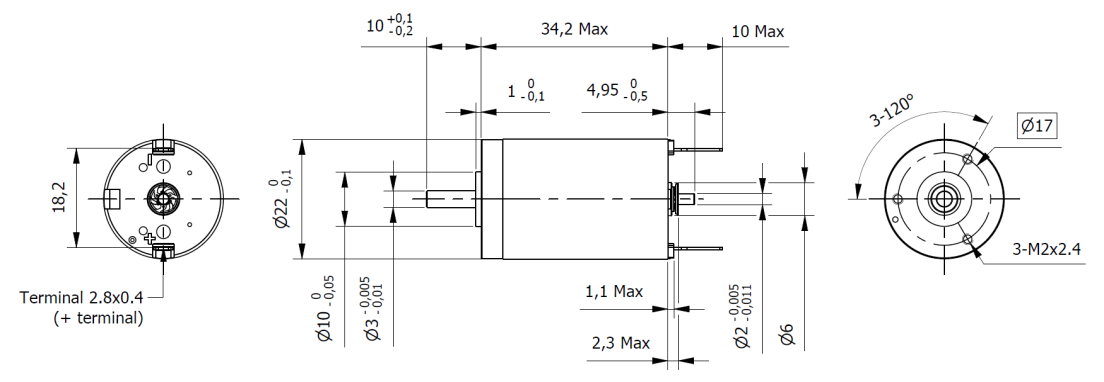

Dimensions

Commutation	Precious Metal Brushes	Size	22 mm
Length (L)	34.2 mm	Weight	66 g
Rated Voltage	48 Vdc	Rated Torque	13.6 mNm
Rated Speed	4240 rpm	Stall Torque	48.6 mNm
Torque Constant	77.2 mNm/A	Motor Regulation	12.8 10³/Nms
Rated Current	0.18 A	Stall Current	0.63 A
No-Load Current	5 mA	No-Load Speed	5890 rpm
Line to Line Resistance	76.2 Ohm	Line to Line Inductance	4.08 mH
Rotor Inertia	4.84 gcm²	Max. Efficiency	84 %
Mechanical Time Constant	6.19 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	7160 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
