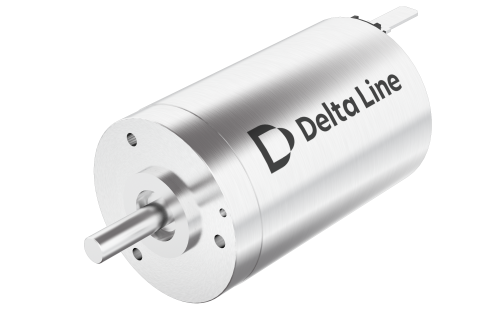

22DC34N-6V-G

Commutation Graphite Brushes | Size 22 mm | Length (L) 34.2 mm | Rated Voltage 6 Vdc | Rated Torque 14.4 mNm | Rated Speed 9700 rpm

Product Code: 22DC34N-6V-9702-G.001

Technical Data

Download

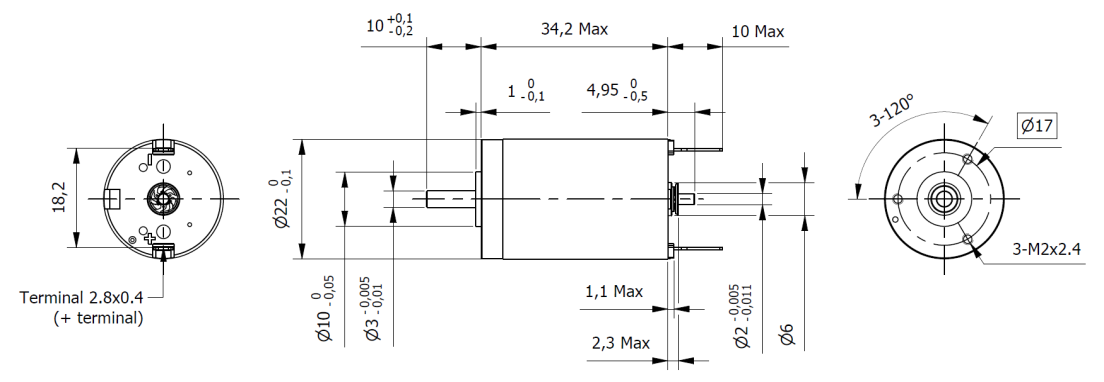

Dimensions

Commutation	Graphite Brushes	Size	22 mm
Length (L)	34.2 mm	Weight	66 g
Rated Voltage	6 Vdc	Rated Torque	14.4 mNm
Rated Speed	9700 rpm	Stall Torque	101.00 mNm
Torque Constant	5.01 mNm/A	Motor Regulation	11.8 10³/Nms
Rated Current	3 A	Stall Current	20.2 A
No-Load Current	126 mA	No-Load Speed	11400 rpm
Line to Line Resistance	0.297 Ohm	Line to Line Inductance	0.017 mH
Rotor Inertia	5.27 gcm²	Max. Efficiency	85 %
Mechanical Time Constant	6.23 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	125 °C	Max. Speed	18000 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
