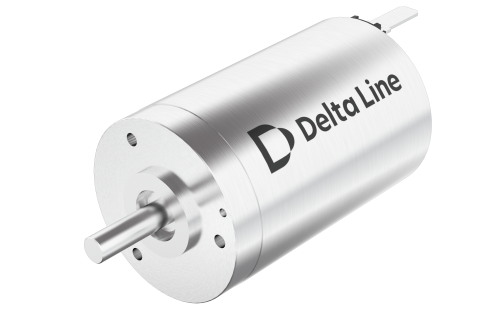

22DC47N-12V-PM

Commutation Precious Metal Brushes | Size 22 mm | Length (L) 47.2 mm | Rated Voltage 12 Vdc | Rated Torque 29.5 mNm | Rated Speed 4000 rpm

Product Code: 22DC47N-12V-4001-PM.001

Technical Data

Download

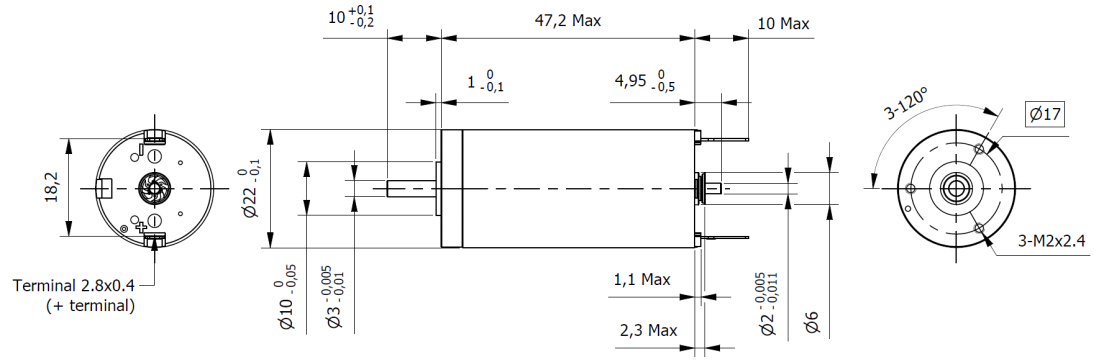

Dimensions

Commutation	Precious Metal Brushes	Size	22 mm
Length (L)	47.2 mm	Weight	95 g
Rated Voltage	12 Vdc	Rated Torque	29.5 mNm
Rated Speed	4000 rpm	Stall Torque	150 mNm
Torque Constant	22.9 mNm/A	Motor Regulation	3.5 10³/Nms
Rated Current	1.3 A	Stall Current	6.54 A
No-Load Current	20 mA	No-Load Speed	4980 rpm
Line to Line Resistance	1.84 Ohm	Line to Line Inductance	0.192 mH
Rotor Inertia	9 gcm²	Max. Efficiency	89 %
Mechanical Time Constant	3.14 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	7160 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
