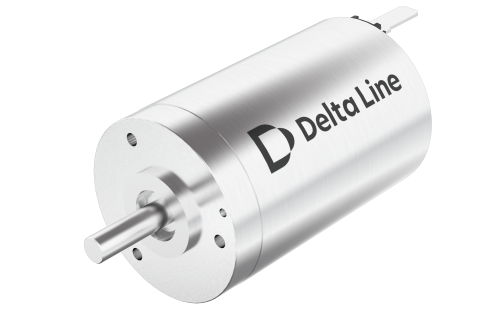

22DC47N-48V-G

Commutation Graphite Brushes | Size 22 mm | Length (L) 47.2 mm | Rated Voltage 48 Vdc | Rated Torque 30.3 mNm | Rated Speed 9020 rpm

Product Code: 22DC47N-48V-9007-G.001

Technical Data

Download

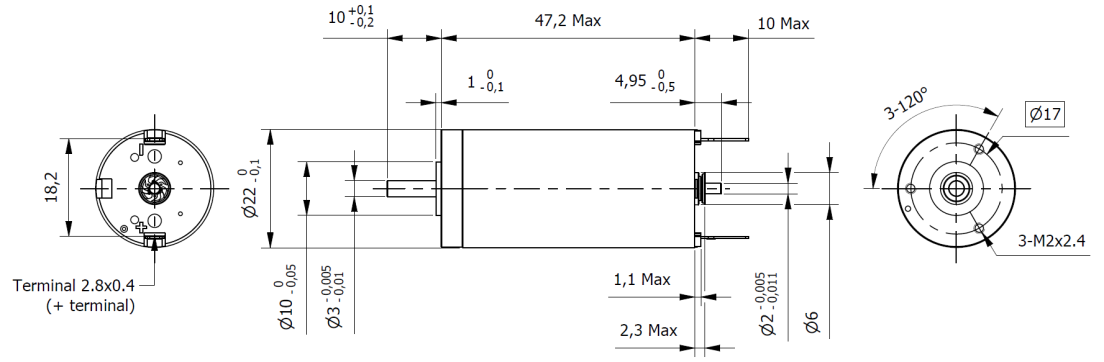

Dimensions

Commutation	Graphite Brushes	Size	22 mm
Length (L)	47.2 mm	Weight	95 g
Rated Voltage	48 Vdc	Rated Torque	30.3 mNm
Rated Speed	9020 rpm	Stall Torque	294 mNm
Torque Constant	45.2 mNm/A	Motor Regulation	3.6 10³/Nms
Rated Current	0.687 A	Stall Current	6.5 A
No-Load Current	16 mA	No-Load Speed	10100 rpm
Line to Line Resistance	7.39 Ohm	Line to Line Inductance	0.746 mH
Rotor Inertia	8.85 gcm²	Max. Efficiency	90 %
Mechanical Time Constant	3.2 ms	Ambient Temperature Sleeve bearings	-30 / +100 °C
Max. Winding Temperature	125 °C	Max. Speed	18000 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
