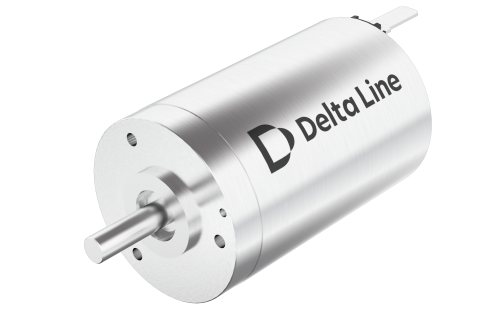

22DC47N-48V-PM

Commutation Precious Metal Brushes | Size 22 mm | Length (L) 47.2 mm | Rated Voltage 48 Vdc | Rated Torque 27.8 mNm | Rated Speed 4180 rpm

Product Code: 22DC47N-48V-4129-PM.001

Technical Data

Download

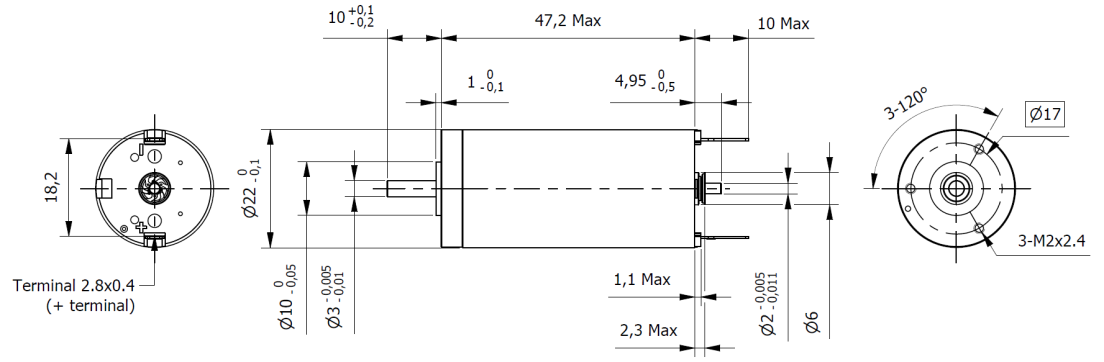

Dimensions

Commutation	Precious Metal Brushes	Size	22 mm
Length (L)	47.2 mm	Weight	95 g
Rated Voltage	48 Vdc	Rated Torque	27.8 mNm
Rated Speed	4180 rpm	Stall Torque	140 mNm
Torque Constant	87.6 mNm/A	Motor Regulation	3.9 10³/Nms
Rated Current	0.322 A	Stall Current	1.6 A
No-Load Current	5 mA	No-Load Speed	5220 rpm
Line to Line Resistance	29.9 Ohm	Line to Line Inductance	2.8 mH
Rotor Inertia	8.12 gcm²	Max. Efficiency	89 %
Mechanical Time Constant	3.17 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	7160 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
