Home > 26DC -P

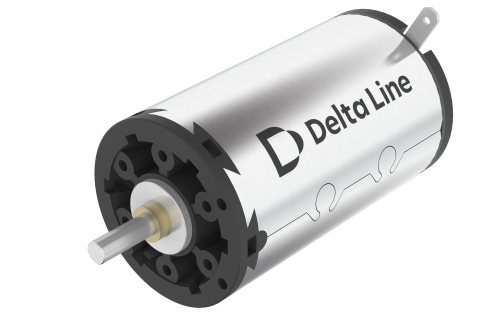

26DC44P-24V-G

Commutation Graphite Brushes | Size 26 mm | Length (L) 44.7 mm | Rated Voltage 24 Vdc | Rated Torque 26.3 mNm | Rated Speed 8100 rpm

Product Code: 26DC44P-24V-8102-G.001

Technical Data

Download

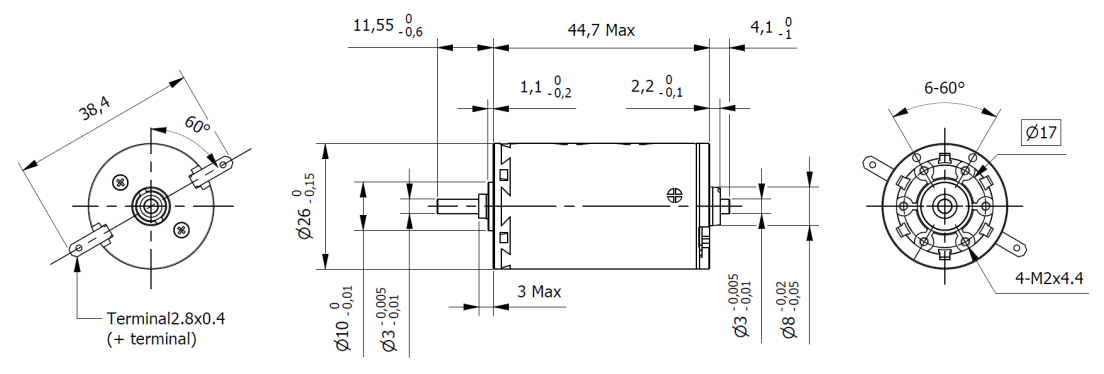

Dimensions

Commutation	Graphite Brushes	Size	26 mm
Length (L)	44.7 mm	Weight	120 g
Rated Voltage	24 Vdc	Rated Torque	26.3 mNm
Rated Speed	8100 rpm	Stall Torque	287 mNm
Torque Constant	25.6 mNm/A	Motor Regulation	3.3 10³/Nms
Rated Current	1.08 A	Stall Current	11.2 A
No-Load Current	53 mA	No-Load Speed	8920 rpm
Line to Line Resistance	2.14 Ohm	Line to Line Inductance	0.278 mH
Rotor Inertia	14.9 gcm²	Max. Efficiency	87 %
Mechanical Time Constant	4.89 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.1 / 0.2 mm
Max. Radial Force (5mm from flange)	5.5 N	Max. Axial Force	2 N
Press-Fit Max.	80 N
