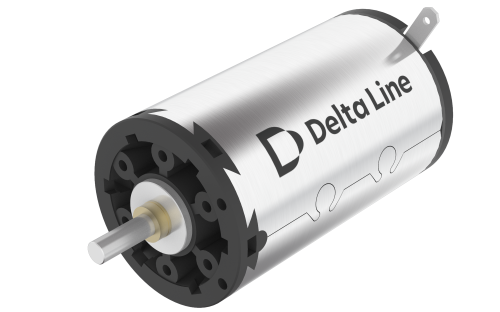

26DC44P-24V-PM

Commutation Precious Metal Brushes | Size 26 mm | Length (L) 44.7 mm | Rated Voltage 24 Vdc | Rated Torque 28.8 mNm | Rated Speed 3450 rpm

Product Code: 26DC44P-24V-3409-PM.001

Technical Data

Download

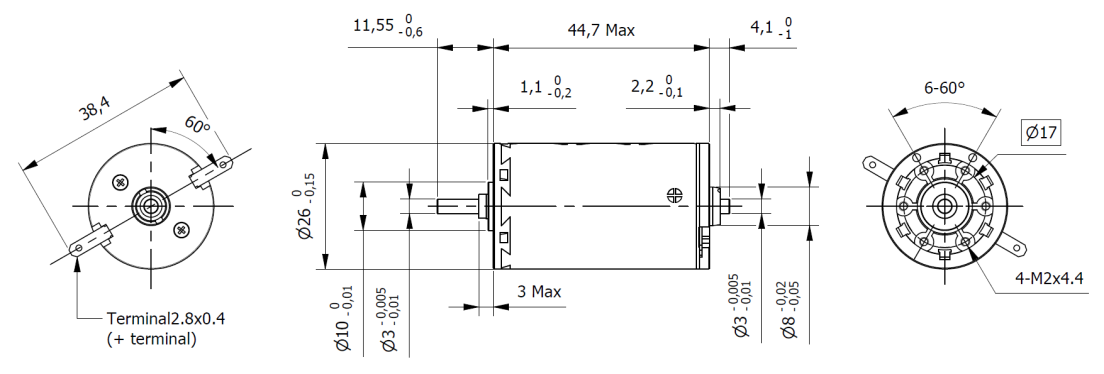

Dimensions

Commutation	Precious Metal Brushes	Size	26 mm
Length (L)	44.7 mm	Weight	120 g
Rated Voltage	24 Vdc	Rated Torque	28.8 mNm
Rated Speed	3450 rpm	Stall Torque	138 mNm
Torque Constant	52.2 mNm/A	Motor Regulation	3.3 10³/Nms
Rated Current	0.564 A	Stall Current	2.64 A
No-Load Current	13 mA	No-Load Speed	4370 rpm
Line to Line Resistance	9.08 Ohm	Line to Line Inductance	1.16 mH
Rotor Inertia	15.2 gcm²	Max. Efficiency	87 %
Mechanical Time Constant	5.06 ms	Ambient Temperature Sleeve bearings	-30 / +65 °C
Max. Winding Temperature	85 °C	Max. Speed	6700 rpm
Radial Play	0.012mm	Axial Play	0.1 / 0.2 mm
Max. Radial Force (5mm from flange)	5.5 N	Max. Axial Force	2 N
Press-Fit Max.	80 N
