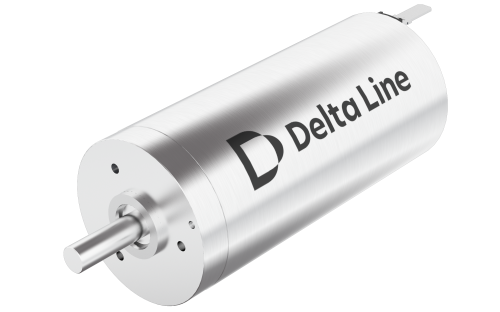

26DC57N-48V-PM

Commutation Precious Metal Brushes | Size 26 mm | Length (L) 57 mm | Rated Voltage 48 Vdc | Rated Torque 50.3 mNm | Rated Speed 4570 rpm

Product Code: 26DC57N-48V-4511-PM.001

Technical Data

Download

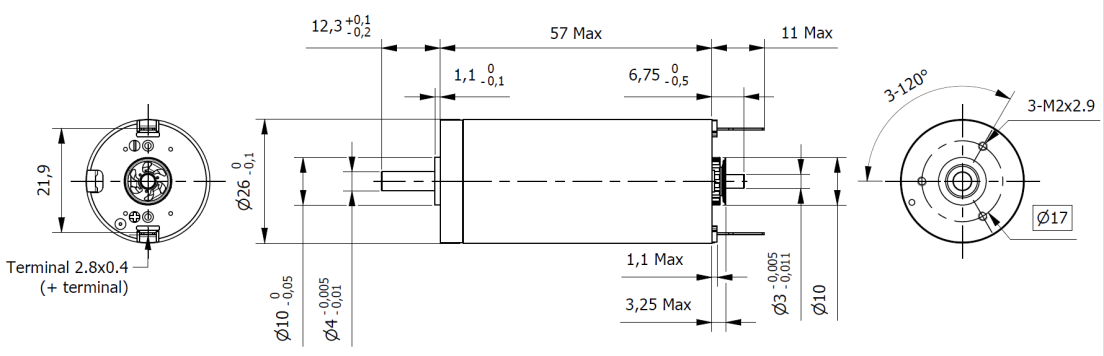

Dimensions

Commutation	Precious Metal Brushes	Size	26 mm
Length (L)	57 mm	Weight	170 g
Rated Voltage	48 Vdc	Rated Torque	50.3 mNm
Rated Speed	4570 rpm	Stall Torque	355 mNm
Torque Constant	85.8 mNm/A	Motor Regulation	1.5 10³/Nms
Rated Current	0.599 A	Stall Current	4.14 A
No-Load Current	14 mA	No-Load Speed	5320 rpm
Line to Line Resistance	11.4 Ohm	Line to Line Inductance	2.06 mH
Rotor Inertia	19.7 gcm²	Max. Efficiency	89 %
Mechanical Time Constant	3.11 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	5900 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	5.5 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
