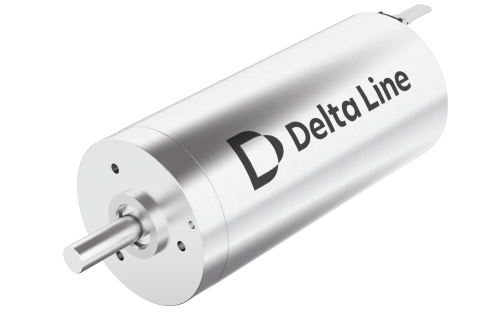

26DC57N-9V-PM

Commutation Precious Metal Brushes | Size 26 mm | Length (L) 57 mm | Rated Voltage 9 Vdc | Rated Torque 32.9 mNm | Rated Speed 5060 rpm

Product Code: 26DC57N-9V-5003-PM.001

Technical Data

Download

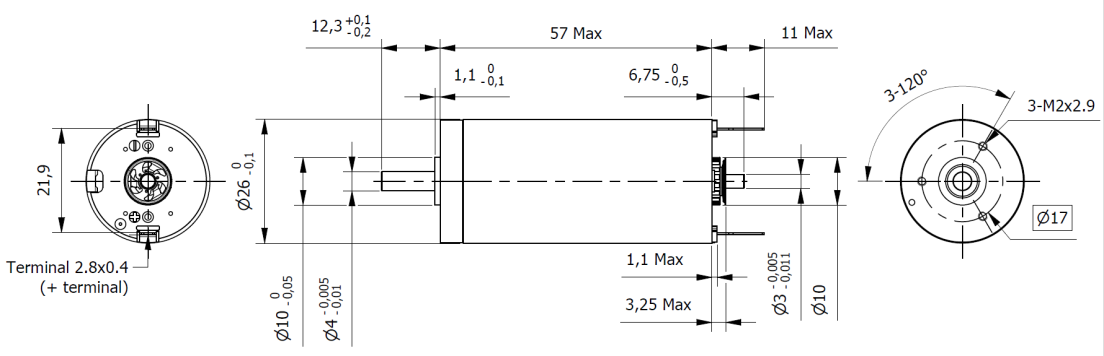

Dimensions

Commutation	Precious Metal Brushes	Size	26 mm
Length (L)	57 mm	Weight	170 g
Rated Voltage	9 Vdc	Rated Torque	32.9 mNm
Rated Speed	5060 rpm	Stall Torque	384 mNm
Torque Constant	15.5 mNm/A	Motor Regulation	1.5 10³/Nms
Rated Current	2.2 A	Stall Current	24.8 A
No-Load Current	80 mA	No-Load Speed	5530 rpm
Line to Line Resistance	0.363 Ohm	Line to Line Inductance	0.067 mH
Rotor Inertia	21.3 gcm²	Max. Efficiency	89 %
Mechanical Time Constant	3.23 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	5900 rpm
Radial Play	0.02mm	Axial Play	0 / 0.2 mm
Max. Radial Force (5mm from flange)	5.5 N	Max. Axial Force	0.1 N
Press-Fit Max.	80 N
