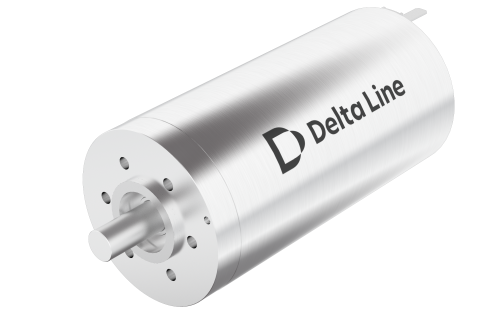

35DC70N-24V-G

Commutation Graphite Brushes | Size 35 mm | Length (L) 70.5 mm | Rated Voltage 24 Vdc | Rated Torque 121 mNm | Rated Speed 7160 rpm

Product Code: 35DC70N-24V-7103-G.001

Technical Data

Download

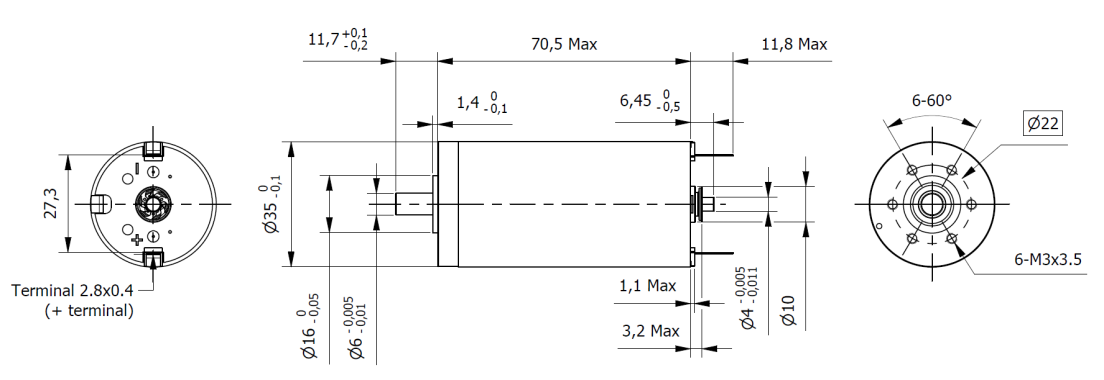

Dimensions

Commutation	Graphite Brushes	Size	35 mm
Length (L)	70.5 mm	Weight	385 g
Rated Voltage	24 Vdc	Rated Torque	121 mNm
Rated Speed	7160 rpm	Stall Torque	2030 mNm
Torque Constant	29.3 mNm/A	Motor Regulation	0.4 10³/Nms
Rated Current	4.26 A	Stall Current	69.3 A
No-Load Current	146 mA	No-Load Speed	7720 rpm
Line to Line Resistance	0.346 Ohm	Line to Line Inductance	0.121 mH
Rotor Inertia	96.6 gcm²	Max. Efficiency	89 %
Mechanical Time Constant	3.91 ms	Ambient Temperature Ball Bearings	-40 / +100 °C
Max. Winding Temperature	155 °C	Max. Speed	12300 rpm
Radial Play	0.02mm	Axial Play	0 / 0.1 mm
Max. Radial Force (5mm from flange)	65.3 N	Max. Axial Force	7 N
Press-Fit Max.	23 N
