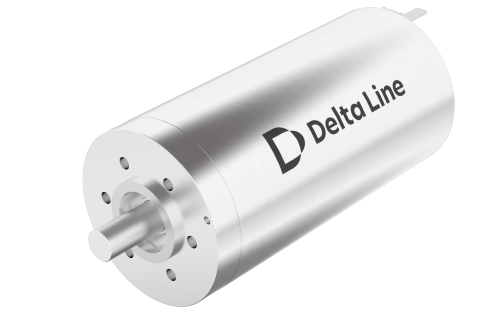

35DC70N-48V-G

Commutation Graphite Brushes | Size 35 mm | Length (L) 70.5 mm | Rated Voltage 48 Vdc | Rated Torque 138 mNm | Rated Speed 6140 rpm

Product Code: 35DC70N-48V-6101-G.001

Technical Data

Download

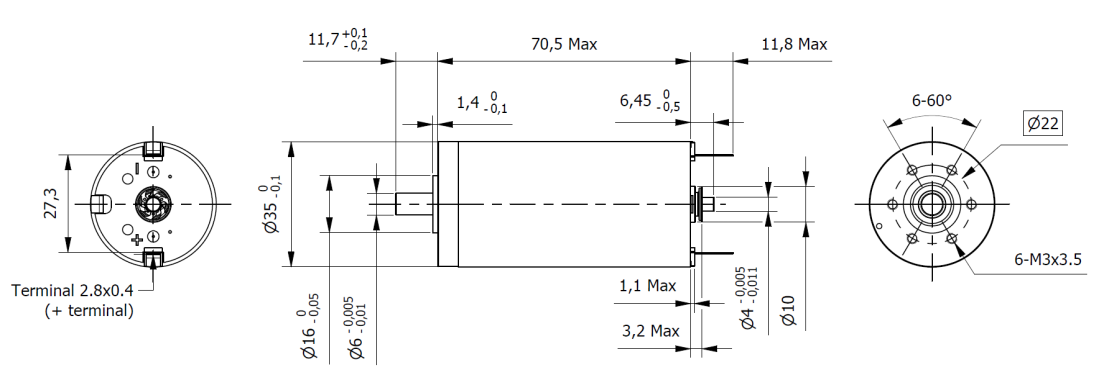

Dimensions

Commutation	Graphite Brushes	Size	35 mm
Length (L)	70.5 mm	Weight	385 g
Rated Voltage	48 Vdc	Rated Torque	138 mNm
Rated Speed	6140 rpm	Stall Torque	1860 mNm
Torque Constant	68.3 mNm/A	Motor Regulation	0.4 10³/Nms
Rated Current	2.08 A	Stall Current	27.3 A
No-Load Current	59 mA	No-Load Speed	6670 rpm
Line to Line Resistance	1.76 Ohm	Line to Line Inductance	0.658 mH
Rotor Inertia	99.5 gcm²	Max. Efficiency	90 %
Mechanical Time Constant	3.76 ms	Ambient Temperature Ball Bearings	-40 / +100 °C
Max. Winding Temperature	155 °C	Max. Speed	12300 rpm
Radial Play	0.02mm	Axial Play	0 / 0.1 mm
Max. Radial Force (5mm from flange)	65.3 N	Max. Axial Force	7 N
Press-Fit Max.	23 N
