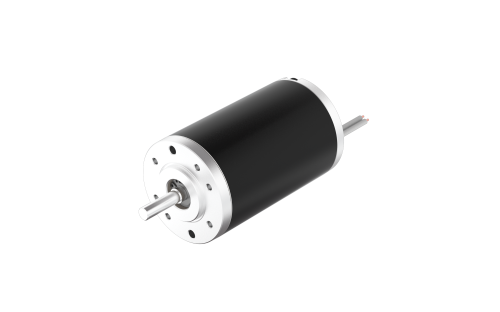

42DI70-48V-G

Size 42 mm | Length (L) 70 mm | Rated Voltage 48 Vdc | Rated Speed 3000 rpm | Rated Torque 38 mNm

Product Code: 42DI70-G3035

Technical Data

Download

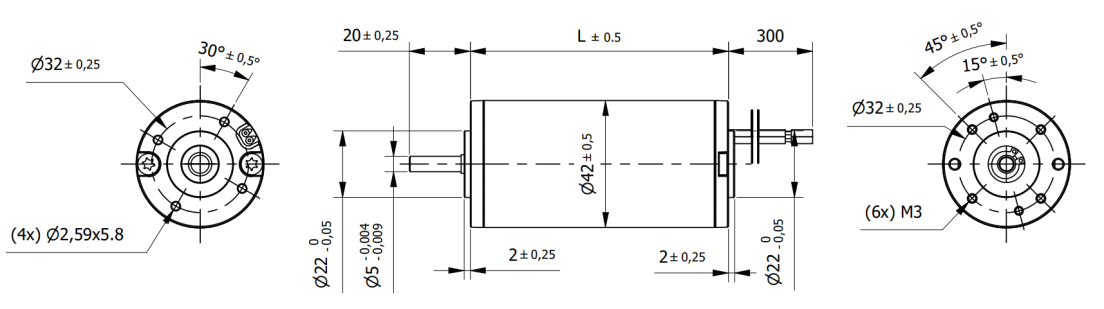

Dimensions

Size	42 mm	Length (L)	70 mm
Rated Voltage	48 Vdc	Rated Speed	3000 rpm
Rated Torque	38 mNm	Max. Peak Torque	0.06 Nm
Stall Torque	140 mNm	Torque Constant	0.11 Nm/A
Speed Constant	84 rpm/V	Rated Current	0.38 A
Stall Current	1.35 A	No-Load Current	0.038 A
No-Load Speed	4115 rpm	Line to Line Resistance	35.5 Ohm
Rotor Inertia	100 gcm²	Max. Efficiency	71 %
Weight	0.39 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	350 N	Protection Class	IP54
Insulation Class	F
