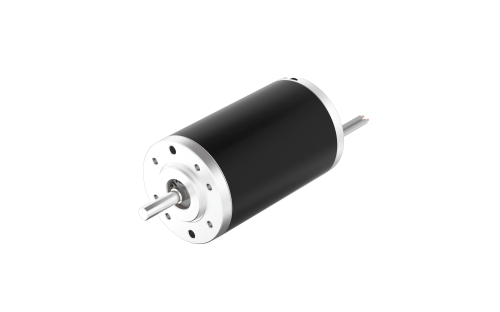

42DI85-12V-G

Size 42 mm | Length (L) 85 mm | Rated Voltage 12 Vdc | Rated Speed 3000 rpm | Rated Torque 57 mNm

Product Code: 42DI85-G3001

Technical Data

Download

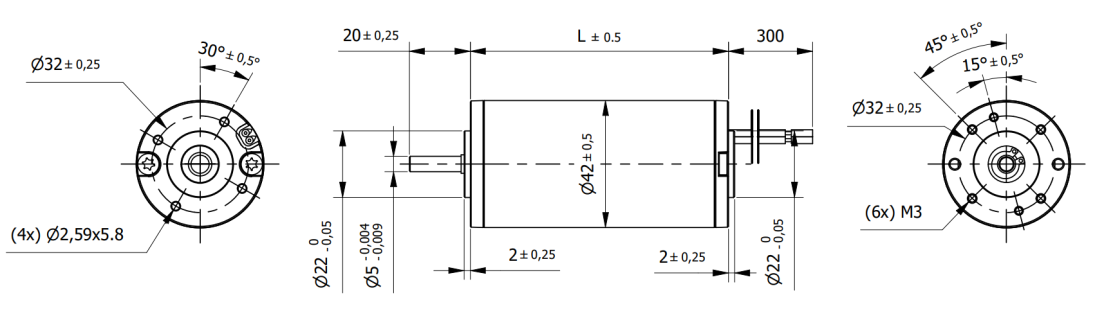

Dimensions

Size	42 mm	Length (L)	85 mm
Rated Voltage	12 Vdc	Rated Speed	3000 rpm
Rated Torque	57 mNm	Max. Peak Torque	0.09 Nm
Stall Torque	270 mNm	Torque Constant	0.029 Nm/A
Speed Constant	340 rpm/V	Rated Current	2.16 A
Stall Current	9.6 A	No-Load Current	0.22 A
No-Load Speed	4128 rpm	Line to Line Resistance	1.25 Ohm
Rotor Inertia	140 gcm²	Max. Efficiency	77 %
Weight	0.52 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	350 N	Protection Class	IP54
Insulation Class	F
