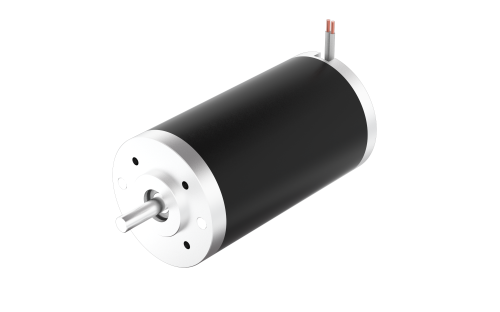

52DI125-12V-G

Size 52 mm | Length (L) 125 mm | Rated Voltage 12 Vdc | Rated Speed 3000 rpm | Rated Torque 220 mNm

Product Code: 52DI125-G3000

Technical Data

Download

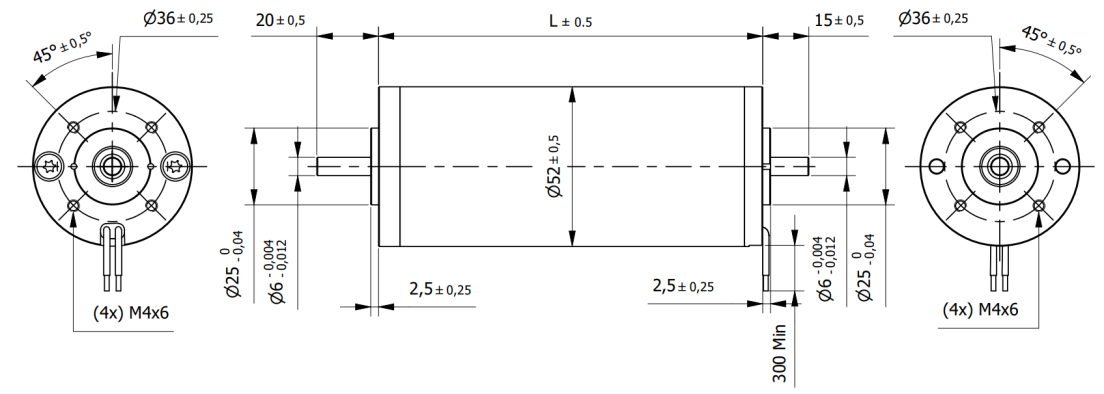

Dimensions

Size	52 mm	Length (L)	125 mm
Rated Voltage	12 Vdc	Rated Speed	3000 rpm
Rated Torque	220 mNm	Max. Peak Torque	0.35 Nm
Stall Torque	1000 mNm	Torque Constant	0.031 Nm/A
Speed Constant	307 rpm/V	Rated Current	7.6 A
Stall Current	35.6 A	No-Load Current	0.37 A
No-Load Speed	3760 rpm	Line to Line Resistance	0.33 Ohm
Rotor Inertia	570 gcm²	Max. Efficiency	79 %
Weight	1.16 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	90 N	Protection Class	IP54
Insulation Class	F
