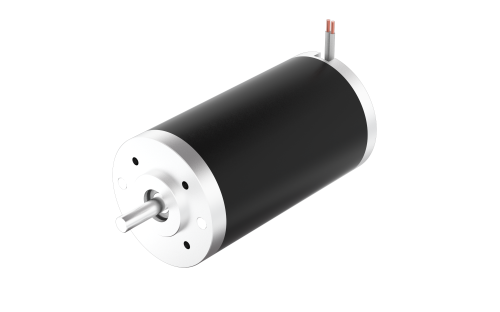

52DI125-48V-G

Size 52 mm | Length (L) 125 mm | Rated Voltage 48 Vdc | Rated Speed 3000 rpm | Rated Torque 220 mNm

Product Code: 52DI125-G3003

Technical Data

Download

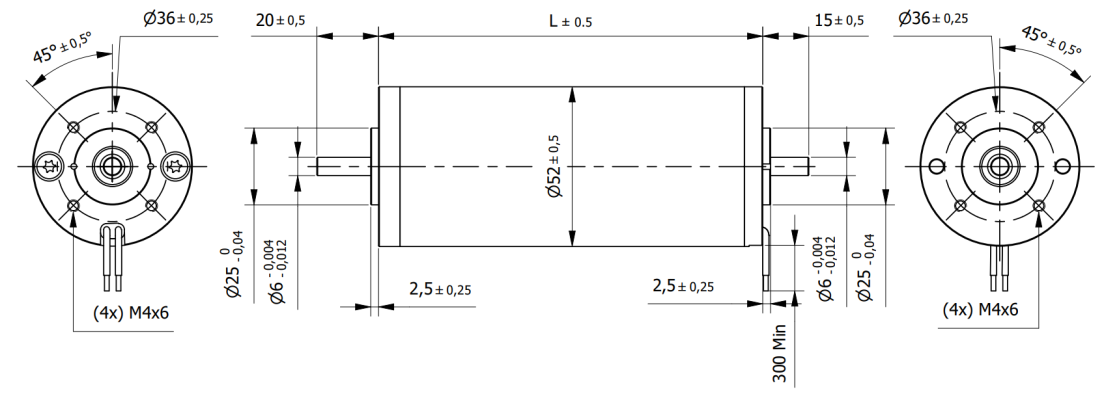

Dimensions

Size	52 mm	Length (L)	125 mm
Rated Voltage	48 Vdc	Rated Speed	3000 rpm
Rated Torque	220 mNm	Max. Peak Torque	0.35 Nm
Stall Torque	1000 mNm	Torque Constant	0.1 Nm/A
Speed Constant	80.8 rpm/V	Rated Current	2.2 A
Stall Current	9.5 A	No-Load Current	0.16 A
No-Load Speed	3838 rpm	Line to Line Resistance	3.42 Ohm
Rotor Inertia	570 gcm²	Max. Efficiency	80 %
Weight	1.16 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	90 N	Protection Class	IP54
Insulation Class	F
