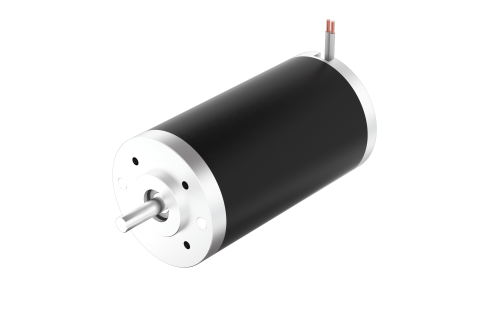

52DI95-12V-G

Size 52 mm | Length (L) 95 mm | Rated Voltage 12 Vdc | Rated Speed 3000 rpm | Rated Torque 90 mNm

Product Code: 52DI95-G3001

Technical Data

Download

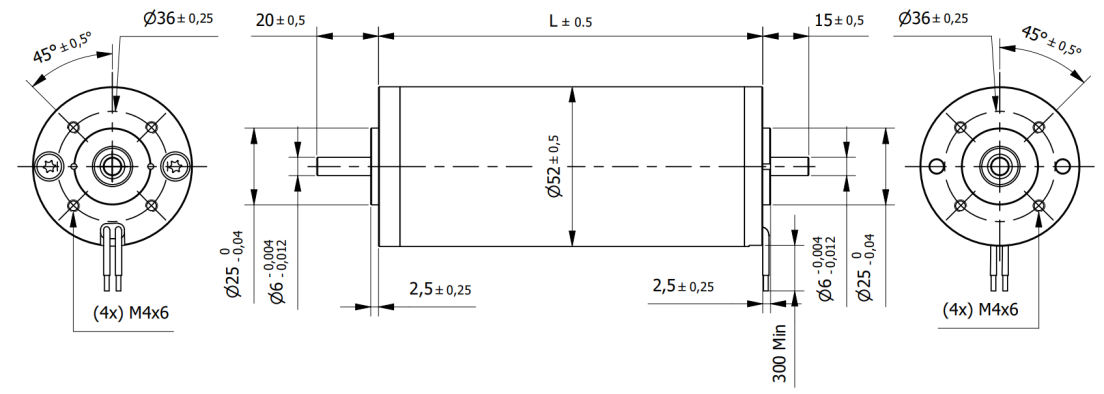

Dimensions

Size	52 mm	Length (L)	95 mm
Rated Voltage	12 Vdc	Rated Speed	3000 rpm
Rated Torque	90 mNm	Max. Peak Torque	0.15 Nm
Stall Torque	450 mNm	Torque Constant	0.021 Nm/A
Speed Constant	294 rpm/V	Rated Current	3.6 A
Stall Current	19 A	No-Load Current	0.46 A
No-Load Speed	3550 rpm	Line to Line Resistance	0.63 Ohm
Rotor Inertia	233 gcm²	Max. Efficiency	76 %
Weight	0.85 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	90 N	Protection Class	IP54
Insulation Class	F
