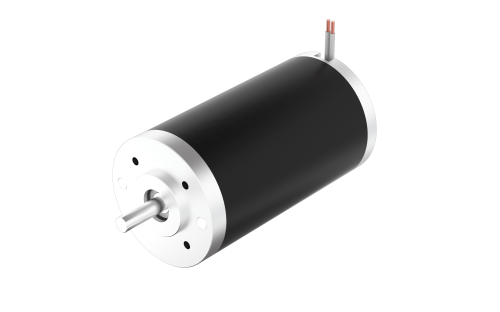

52DI95-24V-G

Size 52 mm | Length (L) 95 mm | Rated Voltage 24 Vdc | Rated Speed 3000 rpm | Rated Torque 90 mNm

Product Code: 52DI95-G3002

Technical Data

Download

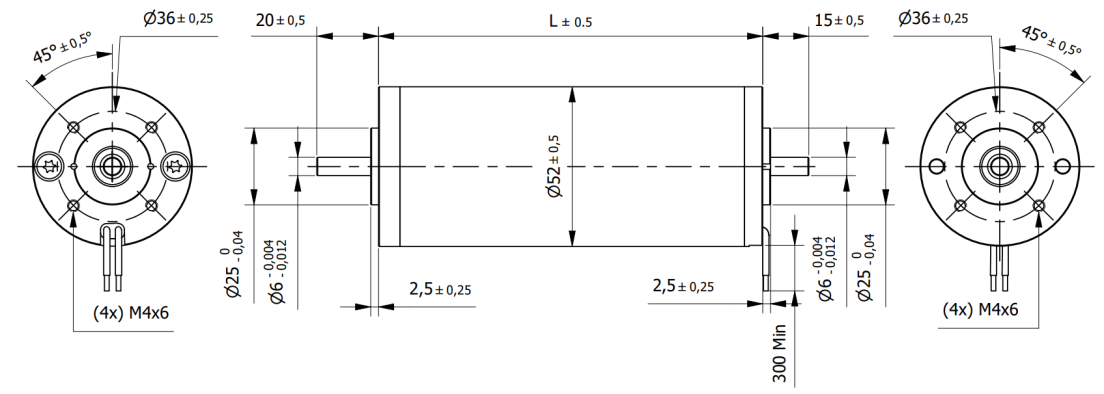

Dimensions

Size	52 mm	Length (L)	95 mm
Rated Voltage	24 Vdc	Rated Speed	3000 rpm
Rated Torque	90 mNm	Max. Peak Torque	0.15 Nm
Stall Torque	500 mNm	Torque Constant	0.06 Nm/A
Speed Constant	154.9 rpm/V	Rated Current	1.7 A
Stall Current	9.8 A	No-Load Current	0.51 A
No-Load Speed	3561 rpm	Line to Line Resistance	1.93 Ohm
Rotor Inertia	233 gcm²	Max. Efficiency	78 %
Weight	0.85 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	90 N	Protection Class	IP54
Insulation Class	F
