63DI125-12V-G

Size 63 mm | Length (L) 125 mm | Rated Voltage 12 Vdc | Rated Speed 3000 rpm | Rated Torque 270 mNm

Product Code: 63DI125-G3000

Technical Data

Download

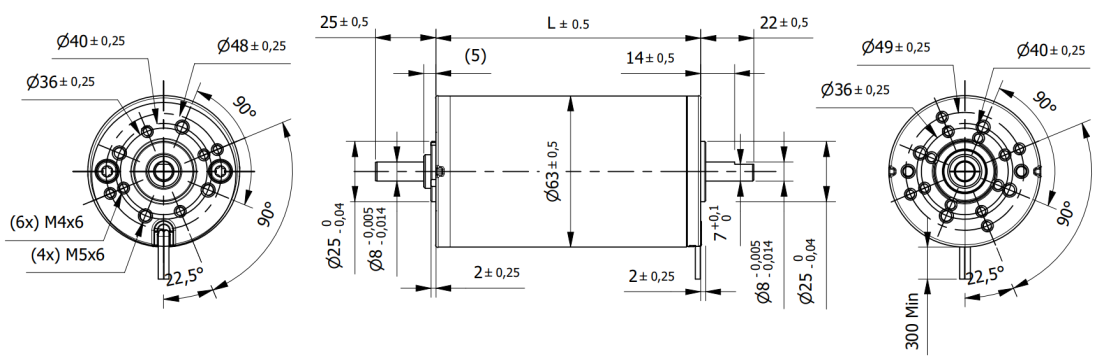

Dimensions

Size	63 mm	Length (L)	125 mm
Rated Voltage	12 Vdc	Rated Speed	3000 rpm
Rated Torque	270 mNm	Max. Peak Torque	0.45 Nm
Stall Torque	2400 mNm	Torque Constant	0.03 Nm/A
Speed Constant	287 rpm/V	Rated Current	9.1 A
Stall Current	75 A	No-Load Current	0.53 A
No-Load Speed	3521 rpm	Line to Line Resistance	0.16 Ohm
Rotor Inertia	930 gcm²	Max. Efficiency	81 %
Weight	1.16 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	150 N	Protection Class	IP54
Insulation Class	F
