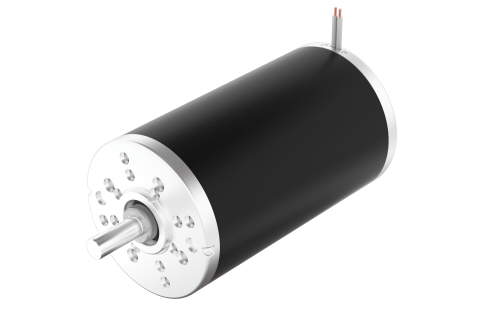

63DI125-24V-G

Size 63 mm | Length (L) 125 mm | Rated Voltage 24 Vdc | Rated Speed 3000 rpm | Rated Torque 270 mNm

Product Code: 63DI125-G3001

Technical Data

Download

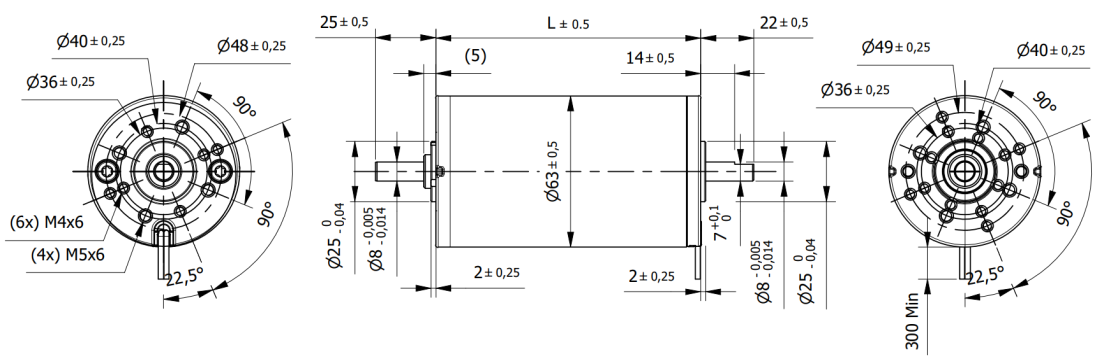

Dimensions

Size	63 mm	Length (L)	125 mm
Rated Voltage	24 Vdc	Rated Speed	3000 rpm
Rated Torque	270 mNm	Max. Peak Torque	0.45 Nm
Stall Torque	1650 mNm	Torque Constant	0.06 Nm/A
Speed Constant	150.9 rpm/V	Rated Current	4.7 A
Stall Current	27.9 A	No-Load Current	0.31 A
No-Load Speed	3617 rpm	Line to Line Resistance	0.59 Ohm
Rotor Inertia	930 gcm²	Max. Efficiency	81 %
Weight	1.16 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	150 N	Protection Class	IP54
Insulation Class	F
