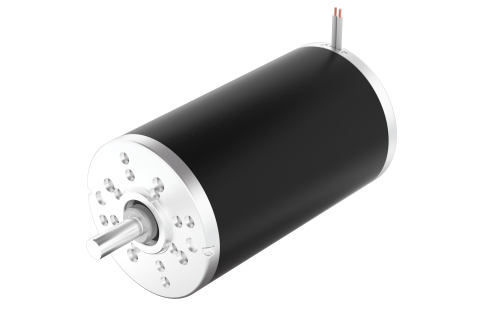

63DI95-12V-G

Size 63 mm | Length (L) 95 mm | Rated Voltage 12 Vdc | Rated Speed 3000 rpm | Rated Torque 180 mNm

Product Code: 63DI95-G3000

Technical Data

Download

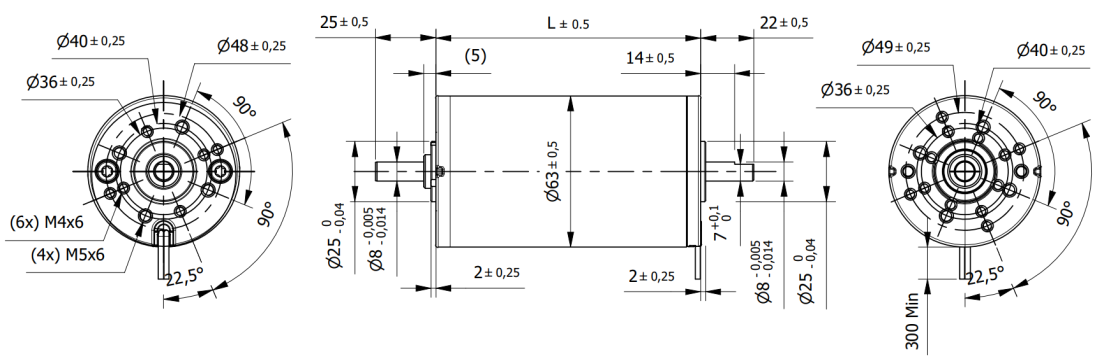

Dimensions

Size	63 mm	Length (L)	95 mm
Rated Voltage	12 Vdc	Rated Speed	3000 rpm
Rated Torque	180 mNm	Max. Peak Torque	0.3 Nm
Stall Torque	1900 mNm	Torque Constant	0.03 Nm/A
Speed Constant	301 rpm/V	Rated Current	6.4 A
Stall Current	64 A	No-Load Current	0.64 A
No-Load Speed	3581 rpm	Line to Line Resistance	0.19 Ohm
Rotor Inertia	740 gcm²	Max. Efficiency	79 %
Weight	0.85 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	150 N	Protection Class	IP54
Insulation Class	F
