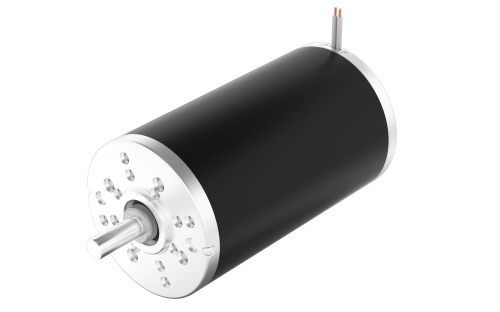

63DI95-24V-G

Size 63 mm | Length (L) 95 mm | Rated Voltage 24 Vdc | Rated Speed 3000 rpm | Rated Torque 180 mNm

Product Code: 63DI95-G3002

Technical Data

Download

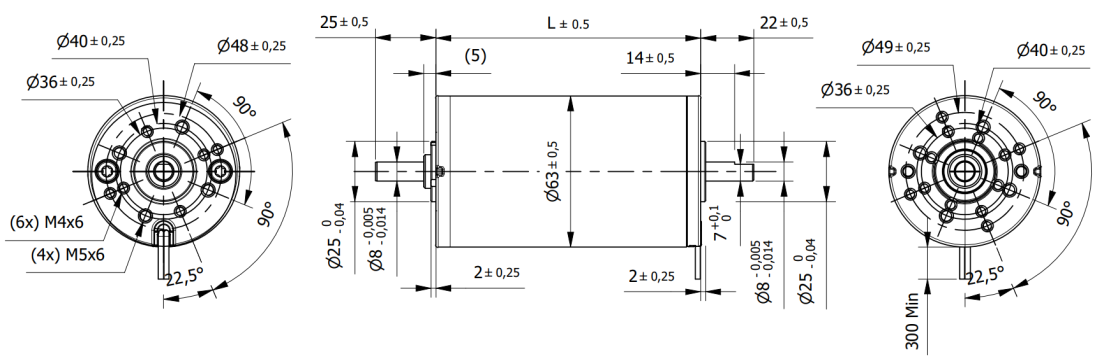

Dimensions

Size	63 mm	Length (L)	95 mm
Rated Voltage	24 Vdc	Rated Speed	3000 rpm
Rated Torque	180 mNm	Max. Peak Torque	0.3 Nm
Stall Torque	700 mNm	Torque Constant	0.06 Nm/A
Speed Constant	151.7 rpm/V	Rated Current	3 A
Stall Current	11.8 A	No-Load Current	0.3 A
No-Load Speed	3591 rpm	Line to Line Resistance	1.65 Ohm
Rotor Inertia	740 gcm²	Max. Efficiency	84 %
Weight	0.85 Kg	Ambient Temperature Ball Bearings	40 °C
Radial Load (15mm from flange)	150 N	Protection Class	IP54
Insulation Class	F
