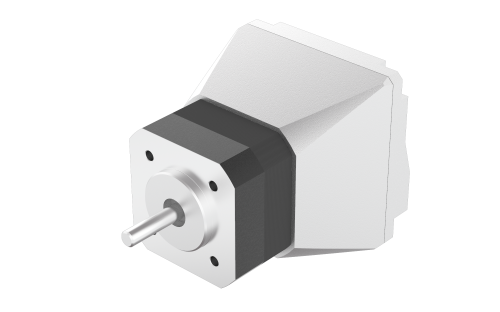

IBS042 00100NE1000 C-S200

Size 42 mm | Length (L) 135 mm | Interface CANopen - programmable | Rated Torque 0.25 Nm | Rated Power 100 Watt | Operating Voltage 24-36 Vdc

Product Code: IBS04200100NE1000C-S200

Technical Data

Download

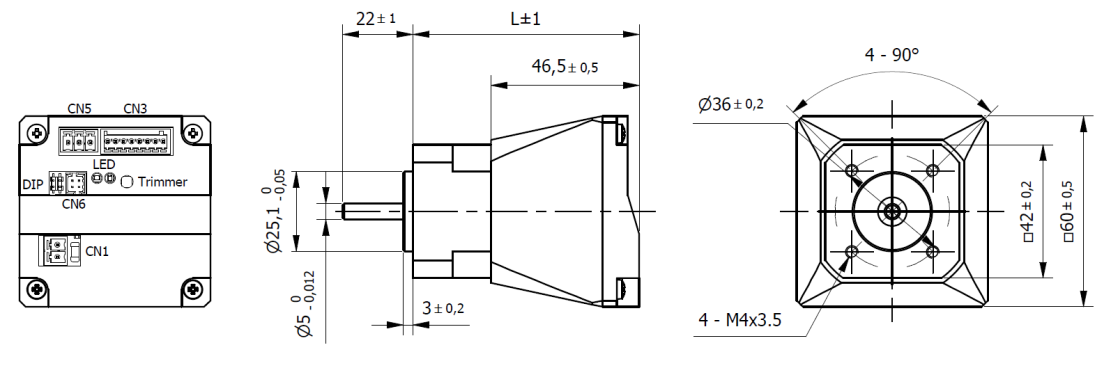

Dimensions

Software

Accessories

Size	42 mm	Length (L)	135 mm
Interface	CANopen - programmable	Rated Torque	0.25 Nm
Rated Power	100 Watt	Rated Current	7 A
Operating Voltage	24-36 Vdc	n° of Pole	8
Rated Voltage	24 Vdc	Rated Speed	4000 rpm
Max. Peak Torque	0.75 Nm	Torque Constant	0.036 Nm/A
Max. Peak Current	20.8 A	No-Load Current	<600 mA
Rotor Inertia	96 gcm²	Weight	1 Kg
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP20	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Speed, Torque
Encoder Type - Standard	Magnetic Incremental encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	Serial Interface	Digital Inputs	3 not isolated 5-24 Vdc NPN or Push Pull
Analog Inputs	1 with potentiometer or 0-10 Vdc	Digital Outputs	2 not isolated, open drain, 5 - 24 Vdc 100 mA
